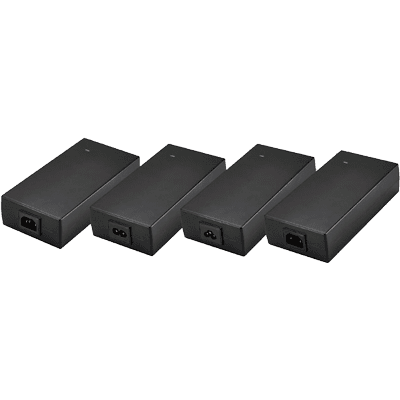

Desktop power supply ITE/Industry | max. 310W
Input voltage: 100-240VACVariation options Power: 230W | 240W | 250,2W | 260W | 270W | 280W | 290W | 300W | 310W Output voltage: 12-18V | 19-28V | 32-42V | 44-56V Output current: 8.43A - 20.85A AC plug: 1= C14 | 2= C8 | 3= C6 | 6= C18 C14 + C6 = protection class I | C8 + C18= protection class II DC plug: according to specification see DC plug list |
|
Manufacturer: | Edac | |
Productgroup: | Desktop Power Supplies | |
Part Number: | EA1300 | |
Datasheet: | Open datasheet | |
Additional Infos: | DC-plug list | |
State: | 🟢 Active |
Note article Request article |
Type: | Desktop | ||
Power : | 310 W | ||
Input Voltage : | 100 - 240 V | ||
Output Voltage : | 12 - 56 V | ||
Approvals: | Industrial | ||
Length: | 197.7 mm | ||
Width: | 102 mm | ||
Heigth: | 51 mm | ||
Min. operating temperature: | 0 °C | ||
Max. operating temperature: | 40 °C |
|
Hint: current revision of the supplier datasheet is applicable
