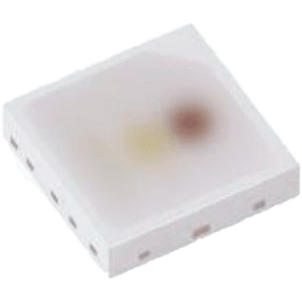

Mid-Power LED | SMD | 3030 | RGB | 621/525/470 nm
Color: RGBVf: 3,35 V |
|
Manufacturer: | Seoul Semiconductor | |
Productgroup: | Mid-Power LEDs | |
Part Number: | SPF0AF0A | |
Series: | 3030 | |
Datasheet: | Open datasheet | |
State: | 🟢 Active |
Note article Request article |
LED-series: | 3030 | ||
Color: | RGB | ||
Wavelength : | 621/525/470 nm | ||
Luminous intensity typ. : | 15279 mcd | ||
Luminous efficiency typ. : | 96 lm/W | ||
Luminous flux typ. : | 48 lm | ||
Vf typ. : | 3.35 V | ||
If : | 150 mA | ||
If max. : | 180 mA | ||
Viewing angle : | 120 ° | ||
Hi-Rel: | No | ||
Length: | 5.75 mm | ||
Width: | 4.68 mm | ||
Heigth: | 1.2 mm | ||
Min. operating temperature: | -30 °C | ||
Max. operating temperature: | 85 °C | ||
Chassis: | SMD 3030 |
|
Hint: current revision of the supplier datasheet is applicable
