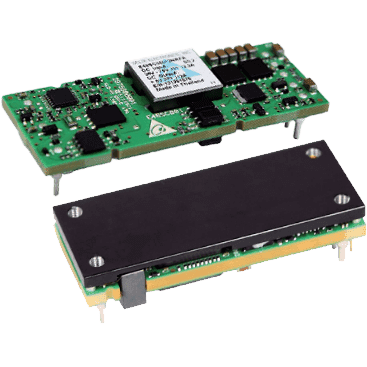

E48SC - Delta Electronics

	DC/DC Converter \| 3,3/5/12/32/50 V \| 300 W \| isol. Input voltage: 36-75VDC Trim range: Yes Efficiency: max. 95,2% Fixed frequency: Yes Variations: Output voltage: 3,3V \| 5 V \| 12V \| 32V \| 50V Remote On/Off-Logik: optional Digital Control: PMBUS, optional Heat spreader: optional Pin lengh: see specific datasheet
Manufacturer:	Delta Electronics
Productgroup:	DC/DC Converters
Part Number:	E48SC
Series:	Delphi E48SC
Datasheet:	Open datasheet
State:	🟢 Active

Note article

Request article

Technical data

	Max. Power :	300 W
	Input Voltage :	36 - 75 V
	Output Voltage :	3,3 \| 5 \| 12 \| 32 \| 50 V
	Adjustable Output Voltage:	No
	Isolation:	Yes
	Isolation :	1,5 \| 2,25 kVDC
	Encapsulated:	No
	Approvals:	Industry
	Mounting:	Print
	Length:	58.4 mm
	Width:	22.8 mm
	Min. operating temperature:	-40 °C
	Max. operating temperature:	85 °C
	Chassis:	1/8 Brick

Hint: current revision of the supplier datasheet is applicable
