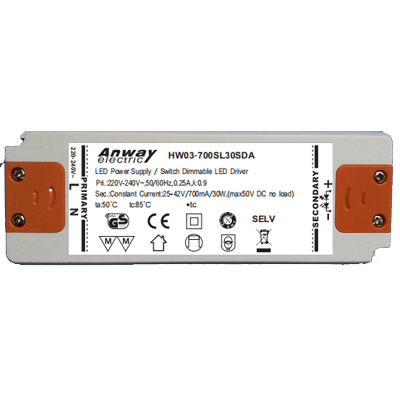

LED Driver | 30 W | 25-42 V | 700 mA | CC
|
|
Manufacturer: | Neumüller Elektronik GmbH | |
Productgroup: | LED Constant Current Drivers | |
Part Number: | HW03-700SL30SDA | |
Series: | HW03 | |
Datasheet: | Open datasheet | |
State: | 🟢 Active |
Note article Request article |
Performance class ≤ : | 30 W | ||
Output current : | 700 mA | ||
LED voltage range : | 25 - 42 VDC | ||
Input voltage : | 220 - 240 VAC | ||
Dimmable: | Yes | ||
Control: | SwitchDim | ||
Programmable: | No | ||
Remote Gear: | Yes | ||
ENEC: | No | ||
tc : | 85 °C | ||
Protection type : | 20 IP | ||
Power factor >: | 0.9 | ||
Length: | 160 mm | ||
Width: | 57.5 mm | ||
Heigth: | 18 mm | ||
Min. operating temperature: | -20 °C | ||
Max. operating temperature: | 50 °C | ||
Chassis: | Plastic |
|
Hint: current revision of the supplier datasheet is applicable
