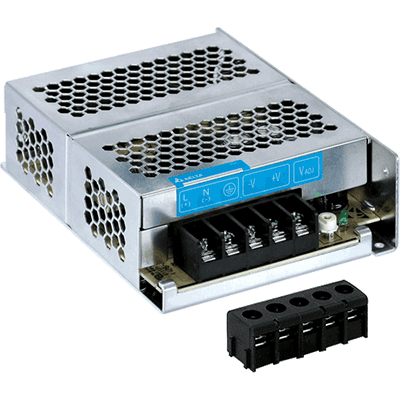

PMC-24V075W1AA - Delta Electronics

PMC-24V075W1AA
Housing Power Supply | 75 W | 24 V | 3,12 A
– Universal AC input range from 85Vac to 264Vac without power de-rating
– Full Aluminium casing for lightweight and corrosion resistant handling
– Conform to harmonic current IEC/EN 61000-3-2, Class A
– High MTBF > 700,000 hrs. as per Telcordia SR-332
– Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections
– Also available: IP20 connector
Manufacturer:
Productgroup: Enclosed Power SuppliesEnclosed Power Supplies
Part Number: PMC-24V075W1AA
Series: PMC
Datasheet: PDF PMC-24V075W1AA | Delta ElectronicsOpen datasheet ↗
State: This article has been discontinued by the manufacturer.
Note article Merkzettel Request article Anfrage


Technical data

Type: Panel Mount
Power : 75 W
Input Voltage : 85 - 264 V
Output Voltage : 24 V
Approvals: Industrial
  Length: 128 mm
  Width: 97 mm
  Heigth: 38 mm
  Min. operating temperature: -10 °C
  Max. operating temperature: 70 °C

Hint: current revision of the supplier datasheet is applicable
