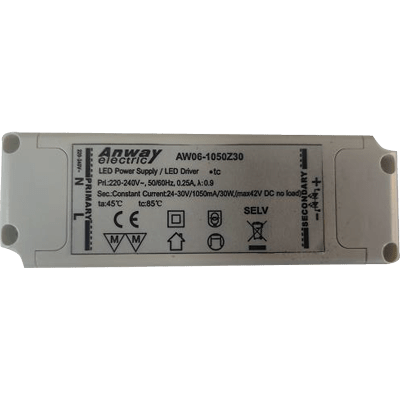

AW06-1050Z30
LED Driver | 30 W | 24-30 V | 1050 mA | CC
Product description
LED Stromversorgung , Konstantstrom (CC)
Leistung: 30W
Eingangsspannung: 220-240V AC
Ausgangsspannung: 24-30VDC
Ausgangsstrom: 1050mA
Schutzklasse: II
Flicker frei
Leistung: 30W
Eingangsspannung: 220-240V AC
Ausgangsspannung: 24-30VDC
Ausgangsstrom: 1050mA
Schutzklasse: II
Flicker frei
Details
- Manufacturer Anway Electric
- Product group LED Drivers and Power Supplies
- Article number AW06-1050Z30
- Series AW06
- Status Active
Technical data
- Operating mode Constant Current
- Performance class ≤ 30 W
- Output current 1050 mA
- LED voltage range 24 - 30 VDC
- Input voltage 220 - 240 VAC
- Dimmable No
- Programmable No
- Remote Gear Yes
- ENEC No
- tc 85 °C
- Protection type 20 IP
- Power factor > 0.97
- Length 127 mm
- Width 42.7 mm
- Height 25 mm
- Min. operating temperature -20 °C
- Max. operating temperature 45 °C
- Housing Kunststoff§Plastic
- Weight 0.11 g
