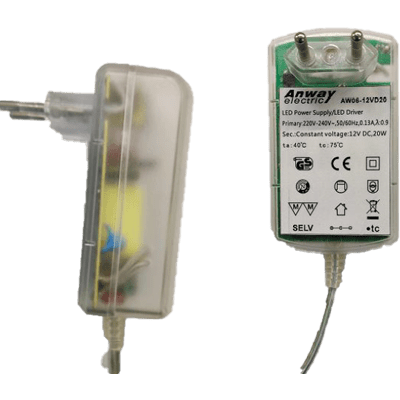

AW06-12VD20
LED Power Supply | 20 W | 12 V | 1670 mA | CV
Product description
LED Betriebsgerät, Konstantspannung (CV) Steckernetzteil
20W Klasse
Eingangsspannung: 220-240VAC
Ausgangsspannung: 12VDC
Ausgangsstrom: 1670mA
Schutzklasse IP20
Ausgangsseitig 80mm 20#2468 Kabel + D5.5X2.1mm DC Stecker, schwarz
20W Klasse
Eingangsspannung: 220-240VAC
Ausgangsspannung: 12VDC
Ausgangsstrom: 1670mA
Schutzklasse IP20
Ausgangsseitig 80mm 20#2468 Kabel + D5.5X2.1mm DC Stecker, schwarz
Details
- Manufacturer Anway Electric
- Product group LED Drivers and Power Supplies
- Article number AW06-12VD20
- Series AW06
- Status Active
Technical data
- Operating mode Constant Voltage
- Performance class ≤ 20 W
- Output current 350 mA
- LED voltage 12 VDC
- Input voltage 220 - 240 VAC
- Dimmable No
- Programmable No
- Remote Gear Yes
- ENEC No
- tc 85 °C
- Protection type 20 IP
- Power factor > 0.8
- Length 95 mm
- Width 55 mm
- Height 37 mm
- Min. operating temperature -20 °C
- Max. operating temperature 40 °C
- Housing Kunststoff§Plastic
- Weight 0.09 g
