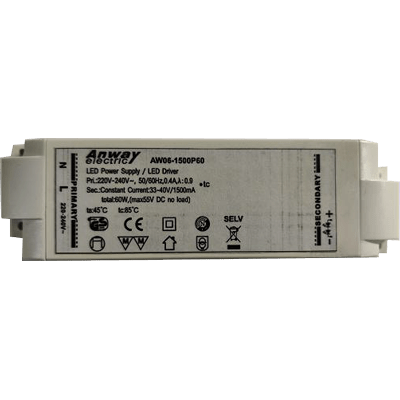

AW06-1500P60
LED Driver | 60 W | 33-40 V | 1500 mA | CC
Product description
LED Stromversorgung , Konstantstrom (CC)
Leistung: 60W
Eingangsspannung: 220-240V AC
Ausgangsspannung: 33-40VDC
Ausgangsstrom: 1500mA
Schutzklasse: II
Flicker frei
Leistung: 60W
Eingangsspannung: 220-240V AC
Ausgangsspannung: 33-40VDC
Ausgangsstrom: 1500mA
Schutzklasse: II
Flicker frei
Details
- Manufacturer Anway Electric
- Product group LED Drivers and Power Supplies
- Article number AW06-1500P60
- Series AW06
- Status Active
Technical data
- Operating mode Constant Current
- Performance class ≤ 60 W
- Output current 1500 mA
- LED voltage range 33 - 40 VDC
- Input voltage 220 - 240 VAC
- Dimmable No
- Programmable No
- Remote Gear Yes
- ENEC No
- tc 85 °C
- Protection type 20 IP
- Power factor > 0.95
- Length 166 mm
- Width 50 mm
- Height 32 mm
- Min. operating temperature -20 °C
- Max. operating temperature 45 °C
- Housing Kunststoff§Plastic
- Weight 0.17 g
