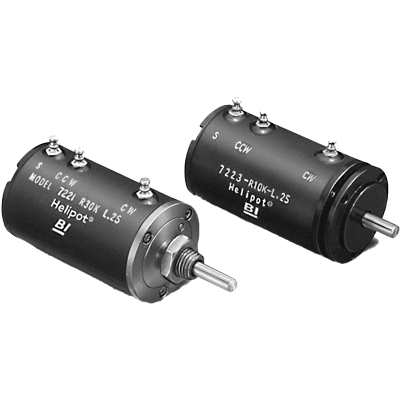

7200 Series

All articles of the 7200 series by BI Technologies


7216R100KL.1 Rotary Potentiometer \| 100k Ω \| Linear \| MultiTurn	BI Technologies	Multi-Turn	100 kΩ	3 %	0.1 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R100KL.25 Rotary Potentiometer \| 100k Ω \| Linear \| MultiTurn	BI Technologies	Multi-Turn	100 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R100KL.252G Rotary Potentiometer \| 100k Ω \| Linear \| MultiTurn	BI Technologies	Multi-Turn	100 kΩ	3 %	0.25 %	2 Watts	10	2	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R100KL.25RS Rotary Potentiometer \| 100k Ω \| Linear \| MultiTurn	BI Technologies	Multi-Turn	100 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Rear Shaft Extension	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R100L.25 Rotary Potentiometer \| 100 Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	0.1 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R10KL.05 Rotary Potentiometer \| 10k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	10 kΩ	3 %	0.05 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R10KL.052G Rotary Potentiometer \| 10k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	10 kΩ	3 %	0.05 %	2 Watts	10	2	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R10KL.15 Rotary Potentiometer \| 10k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	10 kΩ	3 %	0.15 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R10KL.25 Rotary Potentiometer \| 10k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	10 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R10KL.252G Rotary Potentiometer \| 10k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	10 kΩ	3 %	0.25 %	2 Watts	10	2	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R10KL.25CT Rotary Potentiometer \| 10k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	10 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Center Tap	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R10KL.25FS Rotary Potentiometer \| 10k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	10 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Flatted	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R10KL.25RS Rotary Potentiometer \| 10k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	10 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Rear Shaft Extension	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R10L.25 Rotary Potentiometer \| 10 Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	0.01 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R1KL.1 Rotary Potentiometer \| 1k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	1 kΩ	3 %	0.1 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R1KL.25 Rotary Potentiometer \| 1k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	1 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R1KL.252G Rotary Potentiometer \| 1k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	1 kΩ	3 %	0.25 %	2 Watts	10	2	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R1KL.25CT Rotary Potentiometer \| 1k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	1 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Center Tap	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R1KL.25RS Rotary Potentiometer \| 1k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	1 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Rear Shaft Extension	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R1KL.25SS Rotary Potentiometer \| 1k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	1 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Slotted	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R200L.25 Präzisionspotentiomter - 200Ω - 10 Gang Multi-Turn	BI Technologies	Multi-Turn	0.2 kΩ	3 %	0.25 %	2 Watts	10	–	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc Vcc	Solder Turret	–	–	0.01 g
7216R20KL.25 Rotary Potentiometer \| 20k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	20 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R20KL.252G Rotary Potentiometer \| 20k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	20 kΩ	3 %	0.25 %	2 Watts	10	2	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R20KL.25CT Rotary Potentiometer \| 20k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	20 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Center Tap	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R20KT2L.25FS Rotary Potentiometer \| 20k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	20 kΩ	2 %	0.25 %	2 Watts	10	1	Linear	Flatted	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R25L.25 Rotary Potentiometer \| 25 Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	0.03 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R25L.252G Rotary Potentiometer \| 25 Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	0.03 kΩ	3 %	0.25 %	2 Watts	10	2	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R25L.25SL Rotary Potentiometer \| 25 Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	0.03 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Shaft lock	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R2KL.25 Rotary Potentiometer \| 2k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	2 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R2KL.25FS Rotary Potentiometer \| 2k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	2 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Flatted	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R500L.1 Rotary Potentiometer \| 500 Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	0.5 kΩ	3 %	0.1 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R500L.25 Rotary Potentiometer \| 500 Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	0.5 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R500L.25CT Rotary Potentiometer \| 500 Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	0.5 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Center Tap	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R50KL.25 Rotary Potentiometer \| 50k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	50 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R50KL.25RS Rotary Potentiometer \| 50k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	50 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Rear Shaft Extension	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R50KL.25SS Rotary Potentiometer \| 50k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	50 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Slotted	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R50L.25 Rotary Potentiometer \| 50 Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	0.05 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R5KL.05 Rotary Potentiometer \| 5k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	5 kΩ	3 %	0.05 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R5KL.1 Rotary Potentiometer \| 5k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	5 kΩ	3 %	0.1 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R5KL.25 Rotary Potentiometer \| 5k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	5 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R5KL.252G Rotary Potentiometer \| 5k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	5 kΩ	3 %	0.25 %	2 Watts	10	2	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R5KL.25CT Rotary Potentiometer \| 5k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	5 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Center Tap	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R5KL.25RS Rotary Potentiometer \| 5k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	5 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Rear Shaft Extension	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R5KL.25SL Rotary Potentiometer \| 5k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	5 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	20.6 mm	6.35 mm	Metal	Yes	No	Shaft lock	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7216R5KL.25SS Rotary Potentiometer \| 5k Ω \| Linear \| Multi-Turn	BI Technologies	Multi-Turn	5 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Slotted	20.6 mm	6.35 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7221R100KL.25 Rotary Potentiometer \| 100k Ω \| Linear \| MultiTurn	BI Technologies	Multi-Turn	100 kΩ	3 %	0.25 %	2 Watts	10	1	Linear	Plain	17.5 mm	3.18 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7221R100KL.252G Rotary Potentiometer \| 100k Ω \| Linear \| MultiTurn	BI Technologies	Multi-Turn	100 kΩ	3 %	0.25 %	2 Watts	10	2	Linear	Plain	17.5 mm	3.18 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
7221R100KT2L.25 Rotary Potentiometer \| 100k Ω \| Linear \| MultiTurn	BI Technologies	Multi-Turn	100 kΩ	2 %	0.25 %	2 Watts	10	1	Linear	Plain	17.5 mm	3.18 mm	Metal	Yes	No	–	Hybrid	22.2 mm	Panel Mount Vcc	Solder Turret	-65 °C	125 °C	0.01 g
