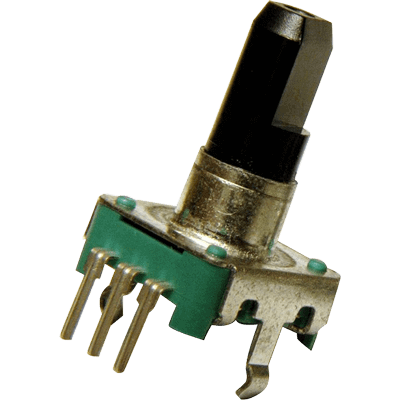

EN12 Series

All articles of the EN12 series by BI Technologies


EN12-HN10AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	0 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-10 °C	70 °C	0.01 g
EN12-HN11AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	12 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-10 °C	70 °C	0.01 g
EN12-HN11AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	12 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-10 °C	70 °C	0.01 g
EN12-HN11AF25 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	12 PPR	1 mA / 5 Vdc	F	25 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-30 °C	85 °C	0.01 g
EN12-HN11AF30 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	12 PPR	1 mA / 5 Vdc	F	30 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-30 °C	85 °C	0.01 g
EN12-HN20AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	0 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-10 °C	70 °C	0.01 g
EN12-HN20AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	0 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-30 °C	85 °C	0.01 g
EN12-HN20AF23 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	0 PPR	1 mA / 5 Vdc	F	23 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-30 °C	85 °C	0.01 g
EN12-HN20AF25 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	0 PPR	1 mA / 5 Vdc	F	25 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-30 °C	85 °C	0.01 g
EN12-HN22AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	24 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-10 °C	70 °C	0.01 g
EN12-HN22AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	24 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-10 °C	70 °C	0.01 g
EN12-HN22AF23 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	24 PPR	1 mA / 5 Vdc	F	23 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-10 °C	70 °C	0.01 g
EN12-HN22AF25 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	24 PPR	1 mA / 5 Vdc	F	25 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-10 °C	70 °C	0.01 g
EN12-HN22AF30 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	24 PPR	1 mA / 5 Vdc	F	30 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-30 °C	85 °C	0.01 g
EN12-HN22BF23 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12, 24	24 PPR	1 mA / 5 Vdc	F	23 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-10 °C	70 °C	0.01 g
EN12-HS10AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12	0 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-30 °C	85 °C	0.01 g
EN12-HS10AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12	0 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-30 °C	85 °C	0.01 g
EN12-HS11AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12	12 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-HS11AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12	12 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-30 °C	85 °C	0.01 g
EN12-HS11AF25 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12	12 PPR	1 mA / 5 Vdc	F	25 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-HS11AF30 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	12	12 PPR	1 mA / 5 Vdc	F	30 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-30 °C	85 °C	0.01 g
EN12-HS20AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	24	0 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-30 °C	85 °C	0.01 g
EN12-HS20AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	24	0 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-30 °C	85 °C	0.01 g
EN12-HS20AF23 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	24	0 PPR	1 mA / 5 Vdc	F	23 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-30 °C	85 °C	0.01 g
EN12-HS20AF25 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	24	0 PPR	1 mA / 5 Vdc	F	25 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-30 °C	85 °C	0.01 g
EN12-HS20AF30 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	24	0 PPR	1 mA / 5 Vdc	F	30 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-30 °C	85 °C	0.01 g
EN12-HS22AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	24	24 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-HS22AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	24	24 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-HS22AF23 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	24	24 PPR	1 mA / 5 Vdc	F	23 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-HS22AF25 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	24	24 PPR	1 mA / 5 Vdc	F	25 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-HS22AF30 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Top	24	24 PPR	1 mA / 5 Vdc	F	30 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-VN20AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	0 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-10 °C	70 °C	0.01 g
EN12-VN22AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	24	24 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-30 °C	85 °C	0.01 g
EN12-VN22AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	24	24 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	No	3 Ω	-30 °C	85 °C	0.01 g
EN12-VS11AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	12 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-VS11AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	12 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-VS11AF25 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	12 PPR	1 mA / 5 Vdc	F	25 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-VS20A18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	0 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-VS20AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	0 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-VS20AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	0 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-VS20AF25 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	0 PPR	1 mA / 5 Vdc	F	25 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-VS22A18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	24 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-VS22AF18 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	24 PPR	1 mA / 5 Vdc	F	18 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-VS22AF20 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	24 PPR	1 mA / 5 Vdc	F	20 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
EN12-VS22AF25 Rotary Encoder \| Incremental \| 12 mm	BI Technologies	12 mm	Side	12, 24	24 PPR	1 mA / 5 Vdc	F	25 mm	Plastic	(5mm)	30000 cycles	Yes	3 Ω	-10 °C	70 °C	0.01 g
