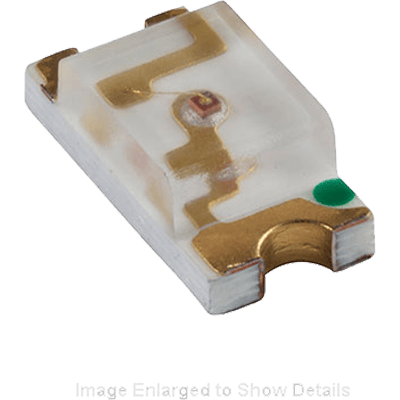

SM1206 Series
All articles of the SM1206 series by Bivar
|
|
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bivar | 1206 | Amber nm | 610 nm | – | 6 mcd | – | – | 0.04 mm | 2 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Amber nm | 610 nm | – | 15 mcd | – | – | 0.04 mm | 2 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Deep Blue nm | 428 nm | – | 9 mcd | – | – | 0.08 mm | 3.9 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Blue nm | 468 nm | – | 225 mcd | – | – | 0.07 mm | 3.3 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Green nm | 568 nm | – | 15 mcd | – | – | 0.04 mm | 2.1 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Green nm | 570 nm | – | 40 mcd | – | – | 0.04 mm | 2 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Hyper Red nm | 640 nm | – | 28.5 mcd | – | – | 0.04 mm | 2 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Hyper Red nm | 640 nm | – | 45 mcd | – | – | 0.04 mm | 2 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Amber nm | 610 nm | – | 1450 mcd | – | – | 0.04 mm | 2.1 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Blue nm | 468 nm | – | 950 mcd | – | – | 0.06 mm | 3.1 V | 20 mA | 30 ° | No | SMD 1206 | 0 g | |
| Bivar | 1206 | Red nm | 630 nm | – | 1250 mcd | – | – | 0.04 mm | 2.1 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | True Green nm | 523 nm | – | 1550 mcd | – | – | 0.06 mm | 3 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Cold White nm | – | 6500 K | 750 mcd | 0.2 V | 3 lm/W | 0.06 mm | 3.1 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Yellow nm | 590 nm | – | 1000 mcd | – | – | 0.04 mm | 2 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Far Red nm | 700 nm | – | 0.9 mcd | – | – | 0.04 mm | 2 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Far Red nm | 700 nm | – | 2.1 mcd | – | – | 0.04 mm | 2 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Hyper Red nm | 660 nm | – | 28 mcd | – | – | 0.04 mm | 1.85 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Blue nm | 468 nm | – | 115 mcd | – | – | 0.07 mm | 3.3 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Green nm | 575 nm | – | 130 mcd | – | – | 0.04 mm | 2.1 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Red nm | 630 nm | – | 80 mcd | – | – | 0.04 mm | 2.1 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Hyper Red nm | 655 nm | – | 55 mcd | – | – | 0.04 mm | 2.1 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Hyper Red nm | 655 nm | – | 220 mcd | – | – | 0.04 mm | 2.1 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | SMD | 398 nm | UV-A nm | 0.65 K | 20 mcd | 3.4 V | 30 lm/W | – | Flat V | – | – | – | SMD 1206 | – | |
| Bivar | SMD | 403 nm | UV-A nm | 0.65 K | 20 mcd | 3.4 V | 30 lm/W | – | Flat V | – | – | – | SMD 1206 | – | |
| Bivar | SMD | 408 nm | UV-A nm | 0.65 K | 20 mcd | 3.4 V | 30 lm/W | – | Flat V | – | – | – | SMD 1206 | – | |
| Bivar | 1206 | Cold White nm | – | 5700 K | 450 mcd | 2 V | 28 lm/W | 0.07 mm | 3.3 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Cold White nm | – | 5700 K | 550 mcd | 0.1 V | 2 lm/W | 0.07 mm | 3.3 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Yellow nm | 593 nm | – | 70 mcd | – | – | 0.04 mm | 2.1 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Yellow nm | 593 nm | – | 270 mcd | – | – | 0.04 mm | 2.1 V | 20 mA | 30 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Yellow nm | 583 nm | – | 6 mcd | – | – | 0.04 mm | 2 V | 20 mA | 140 ° | No | SMD 1206 | – | |
| Bivar | 1206 | Yellow nm | 583 nm | – | 16 mcd | – | – | 0.04 mm | 2 V | 20 mA | 30 ° | No | SMD 1206 | – |
