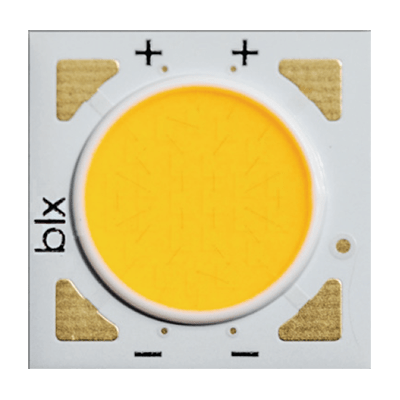

BXRE-30G08FD-E-83
COB LED | LES Ø 8,5 mm | 3000 K | CRI >90
Product description
Type: V8E
Color: Warm white
Binning: 3 step
Vf: 34,5 V
Generation: 8
Datasheet: 455-2
Color: Warm white
Binning: 3 step
Vf: 34,5 V
Generation: 8
Datasheet: 455-2
Details
Technical data
- LED-series COB_V8
- Color Warm White
- CCT 3000 K
- CRI 90
- Luminous intensity typ. 279158 mcd
- Luminous flux typ. 877 lm
- Luminous efficiency typ. 169 lm/W
- Power typ. 5.18 W
- Vf typ. 34.5 V
- If 150 mA
- If max. 360 mA
- Viewing angle 120 °
- Hi-Rel No
- Length 12.5 mm
- Width 12.5 mm
- Height 1.65 mm
- Min. operating temperature -40 °C
- Max. operating temperature 105 °C
- Housing COB
- Weight 0.01 g
