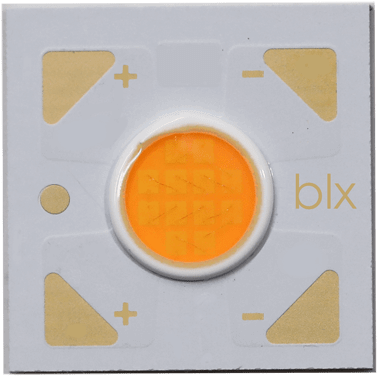

V4_HD Series
All articles of the V4_HD series by Bridgelux
|
|
||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bridgelux | V4_HD | Warm White | 2700 K | 80 | 231411 mcd | 727 lm | 114 lm/W | 6.37 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 2700 K | 90 | 192259 mcd | 604 lm | 95 lm/W | 6.37 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 2700 K | 90 | 214541 mcd | 674 lm | 53 lm/W | 12.74 W | 36.4 V | 350 mA | 600 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 2700 K | 90 | 214541 mcd | 674 lm | 105 lm/W | 6.4 W | 18.3 V | 350 mA | 600 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 2700 K | 97 | 170614 mcd | 536 lm | 84 lm/W | 6.37 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 2700 K | 90 | 190032 mcd | 597 lm | 93 lm/W | 6.4 W | 18.3 V | 350 mA | 600 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 3000 K | 80 | 243507 mcd | 765 lm | 120 lm/W | 6.37 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 3000 K | 90 | 204673 mcd | 643 lm | 101 lm/W | 6.37 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 3000 K | 90 | 187485 mcd | 589 lm | 92 lm/W | 6.37 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 3000 K | 97 | 180163 mcd | 566 lm | 89 lm/W | 6.37 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 3000 K | 98 | 186530 mcd | 586 lm | 92 lm/W | 6.4 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 3500 K | 93 | 204673 mcd | 643 lm | 101 lm/W | 6.37 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Warm White | 3500 K | 90 | 209448 mcd | 658 lm | 103 lm/W | 6.37 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Natural White | 4000 K | 80 | 253375 mcd | 796 lm | 125 lm/W | 6.37 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Natural White | 4000 K | 90 | 214223 mcd | 673 lm | 106 lm/W | 6.37 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Natural White | 4000 K | 98 | 206902 mcd | 650 lm | 102 lm/W | 6.4 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Cool White | 5000 K | 90 | 248601 mcd | 781 lm | 122 lm/W | 6.4 W | 36.6 V | 1750 mA | 300 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g | |
| Bridgelux | V4_HD | Cool White | 5000 K | 98 | 214860 mcd | 675 lm | 106 lm/W | 6.4 W | 36.4 V | 175 mA | 240 mA | 120 ° | No | 12.5 mm | 12.5 mm | 1.63 mm | -40 °C | 105 °C | 0.01 g |
