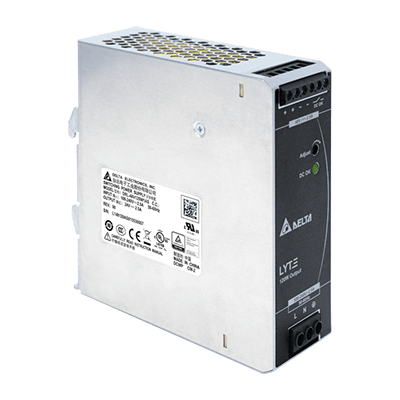

DRL-48V120W1AS
Lyte DIN Rail 120W 48VDC2,5A mit Relais 1-phasig
Product description
Lyte Serie Hutschiene, Din Rail mit DC OK Contact
Leistung: 120W
Eingangsspannung: 85-264VAC
Eingangsspannung: 120-375VDC
Ausgangsspannung: 48VDC
Ausgangsstrom: 2,5A
Effizienz: 90%
Gehäuse: 123,6x40,0x117,6mm
Arbeitstemperatur: -20 bis +70°C
UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881) GB4943.1, UL 508 and CSA C22.2 No. 107.1-01, In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC, EN 61204-3, EN 61000-6-3, EN 61000-6-4 CISPR 22, EN 55022, EN 55011, FCC Title 47: Class Bprotections
Leistung: 120W
Eingangsspannung: 85-264VAC
Eingangsspannung: 120-375VDC
Ausgangsspannung: 48VDC
Ausgangsstrom: 2,5A
Effizienz: 90%
Gehäuse: 123,6x40,0x117,6mm
Arbeitstemperatur: -20 bis +70°C
UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881) GB4943.1, UL 508 and CSA C22.2 No. 107.1-01, In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC, EN 61204-3, EN 61000-6-3, EN 61000-6-4 CISPR 22, EN 55022, EN 55011, FCC Title 47: Class Bprotections
Details
- Manufacturer Delta Electronics
- Product group DIN Rail Power Supplies
- Article number DRL-48V120W1AS
- Series DRL
- Status Discontinued
Technical data
- Type DIN Rail
- Power 120 W
- Input Voltage 85 - 264 V
- Output Voltage 48 V
- Weight 0.54 g
