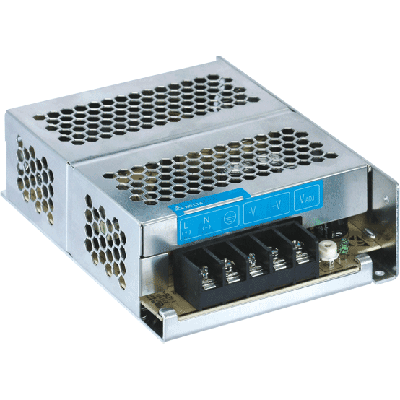

PMC-12V060W1NA
Housing Power Supply | 60 W | 12 V | 5 A
Product description
– Universal AC input voltage without power de-rating
– Full corrosion resistant Aluminium chassis
– NEC Class 2 power supply and Limited Power Source (LPS) approvals
– High MTBF > 700,000 hrs. as per Telcordia SR-332
– Wide operating temperature range from -20°C to 70°C
– Conformal Coating (Class I, Div 2 Hazardous Locations Ready)
– Full corrosion resistant Aluminium chassis
– NEC Class 2 power supply and Limited Power Source (LPS) approvals
– High MTBF > 700,000 hrs. as per Telcordia SR-332
– Wide operating temperature range from -20°C to 70°C
– Conformal Coating (Class I, Div 2 Hazardous Locations Ready)
Details
- Manufacturer Delta Electronics
- Product group Enclosed Power Supplies
- Article number PMC-12V060W1NA
- Series PMC
- Status Discontinued
Technical data
- Type Panel Mount
- Power 60 W
- Input Voltage 85 - 264 V
- Output Voltage 12 V
- Approvals Industrial
- Length 128 mm
- Width 97 mm
- Height 38 mm
- Min. operating temperature -10 °C
- Max. operating temperature 70 °C
- Weight 0.01 g
