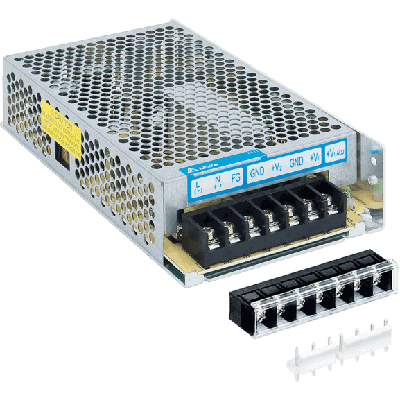

PMT-D1V75W2BA
Housing Power Supply | 75 W | Dual output
Product description
– Conforms to harmonic current IEC/EN 61000-3-2, Class A
– Selectable AC Switch (85-132Vac, 170-264Vac)
– High MTBF > 700,000 hrs. as per Telcordia SR-332
– Versatile configuration options (Enclosed, L Frame)
– Versatile connector options (Terminal Block, Front Face, Harness)
– Selectable AC Switch (85-132Vac, 170-264Vac)
– High MTBF > 700,000 hrs. as per Telcordia SR-332
– Versatile configuration options (Enclosed, L Frame)
– Versatile connector options (Terminal Block, Front Face, Harness)
Details
- Manufacturer Delta Electronics
- Product group Enclosed Power Supplies
- Article number PMT-D1V75W2BA
- Series PMT
- Status Active
Technical data
- Type Panel Mount
- Power 73 W
- Input Voltage 90 - 264 V
- Output Voltage 5 | 12 V
- Approvals Industrial | Household
- Length 129 mm
- Width 97 mm
- Height 30 mm
- Min. operating temperature -10 °C
- Max. operating temperature 70 °C
- Weight 0.28 g
