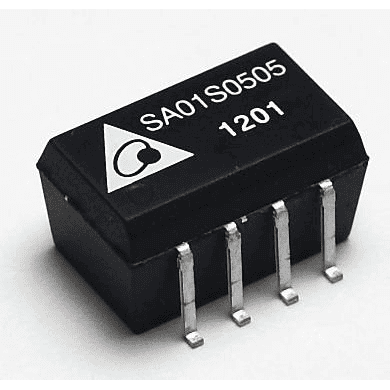

SA01S
DC/DC Converter | 3,3/5/9/12/15 V | 1 W | isolated
Product description
Input voltage: 5V | 12V | 24V
Trim range: Yes
Efficiency: max. 82%
Fixed frequency: Yes
Isolation: max. 1,0kV
Variations:
Output voltage: 3,3V | 5V | 9V | 12V | 15V
Pin lengh: see datasheet
Trim range: Yes
Efficiency: max. 82%
Fixed frequency: Yes
Isolation: max. 1,0kV
Variations:
Output voltage: 3,3V | 5V | 9V | 12V | 15V
Pin lengh: see datasheet
Details
- Manufacturer Delta Electronics
- Product group DC/DC Converters
- Article number SA01S
- Series SA01
- Status Active
Technical data
- Max. Power 1 W
- Input Voltage 5 | 12 | 24 V
- Output Voltage 3,3 | 5 | 9 | 12 | 15 V
- Adjustable Output Voltage No
- Isolation Yes
- Isolation 1 kVDC
- Encapsulated Yes
- Mounting Print
- Length 12.7 mm
- Width 8.3 mm
- Height 7.8 mm
- Min. operating temperature -40 °C
- Max. operating temperature 85 °C
- Housing SMD
- Weight 0 g
