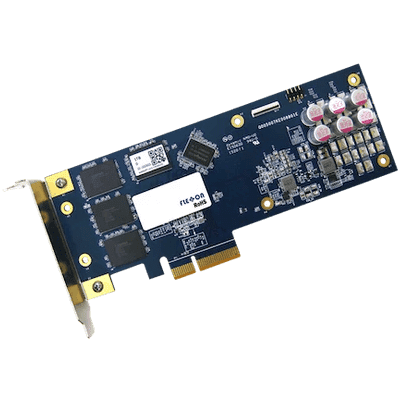

FCCD960GBC-EC00
PCIe - AIC SSD HIX 960GB 3D-NAND TLC
Product description
FLEXXON’s HIX Add-In-Card (AIC) PCIe SSD 960GB has PCIe Gen3x4 interface, and is fully compliant with NVMe 1.3 industrial standard.
It supports ultimate performance, high density and great reliability, suitable for enterprise application.
- Advanced Flash Management: Static and Dynamic Wear Leveling, Bad Block Management, TRIM, SMART, Over-Provision, Firmware update
- Power Management: Support APST, support ASPM, support L1.2
- End to end data path protection
- Thermal throttling
- Smart ECC
- SmartRefresh
- Drive log
- Support TCG OPAL and TCG Pyrite
- RoHS compliant
It supports ultimate performance, high density and great reliability, suitable for enterprise application.
- Advanced Flash Management: Static and Dynamic Wear Leveling, Bad Block Management, TRIM, SMART, Over-Provision, Firmware update
- Power Management: Support APST, support ASPM, support L1.2
- End to end data path protection
- Thermal throttling
- Smart ECC
- SmartRefresh
- Drive log
- Support TCG OPAL and TCG Pyrite
- RoHS compliant
Details
Technical data
- Series HIX
- Form Factor AIC
- Memory Type 3D TLC
- Interface NVMe PCIe Gen3 x4
- Capacity 960 GB
- Write Performance 3045 MB/s
- Read Performance 3390 MB/s
- Operating Voltage 12 V
- MTBF 2000000
- Shock Resistance 1500G/0.5ms
- Vibration Resistance 80Hz ~ 2000Hz/20G
- Industrie No
- Medical No
- Military No
- Power Loss Protection No
- Length 167.65 mm
- Width 64.4 mm
- Height 16.24 mm
- Max. operating temperature 70 °C
- Weight 0.01 g
