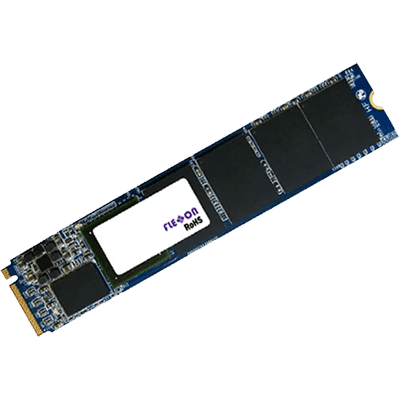

FCSP3840BE-EC00
PCIe - M.2 22110 SSD HIX 3840GB 3D-NAND TLC
Product description
FLEXXON’s HIX PCIe M.2 22110 3840GB SSD 3D-NAND TLC has PCIe Gen3x4 interface, and is fully compliant with NVMe 1.3 industrial standard. It supports ultimate performance, high density and great reliability, suitable for enterprise application.
- Advanced Flash Management: Static and Dynamic Wear Leveling, Bad Block Management, TRIM, SMART, Over-Provision, Firmware update
- Power Management: Support APST, support ASPM, support L1.2
- End to end data path protection
- Thermal throttling
- Smart ECC
- SmartRefresh
- Drive log
- Support Pyrite/AES256/TCG OPAL
- RoHS compliant
- Advanced Flash Management: Static and Dynamic Wear Leveling, Bad Block Management, TRIM, SMART, Over-Provision, Firmware update
- Power Management: Support APST, support ASPM, support L1.2
- End to end data path protection
- Thermal throttling
- Smart ECC
- SmartRefresh
- Drive log
- Support Pyrite/AES256/TCG OPAL
- RoHS compliant
Details
Technical data
- Series HIX
- Form Factor M.2 22110
- Memory Type 3D TLC
- Interface NVMe PCIe Gen3 x4
- Capacity 3840 GB
- Write Performance 850 MB/s
- Read Performance 3200 MB/s
- Operating Voltage 3.3 V
- MTBF 2000000
- Shock Resistance 1500G/0.5ms
- Vibration Resistance 80Hz ~ 2000Hz/20G
- Industrie Yes
- Medical No
- Military No
- Power Loss Protection No
- Length 110 mm
- Width 22 mm
- Height 1.35 mm
- Min. operating temperature -40 °C
- Max. operating temperature 85 °C
- Weight 0.01 g
