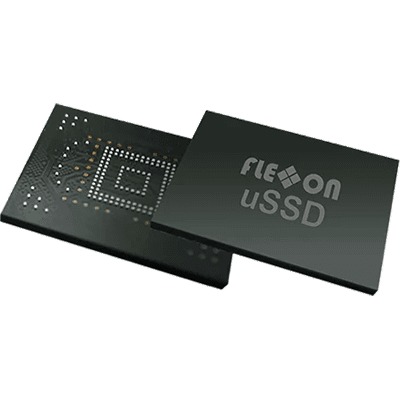

FSSK008GMG-SB30
SATA III - uSSD SSD XTREME MLC 8GB Gold
Product description
FLEXXON’s XTREME uSSD MLC 8GB Gold has the SATA III interface with BGA form factor.
It is a DRAM-less design with good performance & high reliability, and suitable for embedded applications.
- Advanced Flash Management: Static and Dynamic Wear Leveling, Bad Block Management, TRIM, SMART, Over-Provision, Firmware update
- Backwards Compatible with SATA II (3Gb/s) and SATA I (1.5Gb/s)
- Low Power Management
- Power Loss Protection
- Advanced Device Security: Secure Erase, Write Protect
- Data Compression Technique
- Adaptive Approach to Performance Tuning
- BGA Form Factor
- RoHS Compliant
It is a DRAM-less design with good performance & high reliability, and suitable for embedded applications.
- Advanced Flash Management: Static and Dynamic Wear Leveling, Bad Block Management, TRIM, SMART, Over-Provision, Firmware update
- Backwards Compatible with SATA II (3Gb/s) and SATA I (1.5Gb/s)
- Low Power Management
- Power Loss Protection
- Advanced Device Security: Secure Erase, Write Protect
- Data Compression Technique
- Adaptive Approach to Performance Tuning
- BGA Form Factor
- RoHS Compliant
Details
Technical data
- Series XTREME
- Form Factor uSSD
- Memory Type MLC
- Interface SATA III 6Gbps
- Capacity 8 GB
- Write Performance 100 MB/s
- Read Performance 165 MB/s
- Operating Voltage 3,3 | 1,8 V
- MTBF 2000000
- Industrie Yes
- Length 16 mm
- Width 20 mm
- Height 1.57 mm
- Min. operating temperature -25 °C
- Max. operating temperature 85 °C
- Weight 0.01 g
