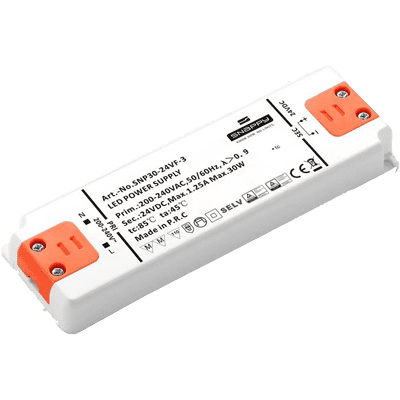

SNP30-24VF-3
LED Power Supply | 30 W | 24 V | 1250 mA | CV
Product description
LED- Betriebsgerät LED- Konverter LED- Treiber
Konstantspannung (CV)
Leistung: 30W
Eingangsspannung: 200-240VAC
Ausgangsspannung: 24VDC
Ausgangsstrom: 1250mA
Wirkungsgrad: 85%
Schutzklasse: IP20
Arbeitstemperatur: -20 bis +45°C
Gehäuse: 156,0x50,0x17,0mm
Zulassungen: IEC61347-1, IEC61347-2-13, IEC61000-3-2, IEC55015, IEC61547
Konstantspannung (CV)
Leistung: 30W
Eingangsspannung: 200-240VAC
Ausgangsspannung: 24VDC
Ausgangsstrom: 1250mA
Wirkungsgrad: 85%
Schutzklasse: IP20
Arbeitstemperatur: -20 bis +45°C
Gehäuse: 156,0x50,0x17,0mm
Zulassungen: IEC61347-1, IEC61347-2-13, IEC61000-3-2, IEC55015, IEC61547
Details
- Manufacturer Neumüller Elektronik
- Product group LED Drivers and Power Supplies
- Article number SNP30-24VF-3
- Series SNP
- Status Active
Technical data
- Operating mode Constant Voltage
- Performance class ≤ 30 W
- Output current 1250 mA
- LED voltage 24 VDC
- Input voltage 220 - 240 VAC
- Dimmable No
- Programmable No
- Remote Gear Yes
- ENEC No
- tc 80 °C
- Protection type 20 IP
- Length 156 mm
- Width 50 mm
- Height 17 mm
- Min. operating temperature -20 °C
- Max. operating temperature 45 °C
- Weight 0.01 g
