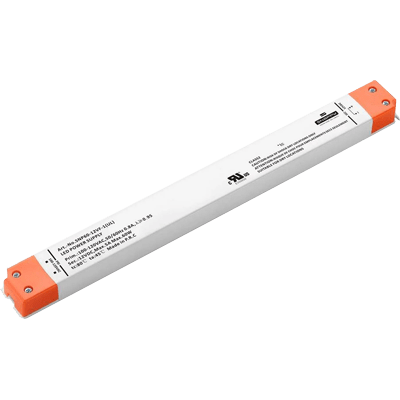

SNP60-12VF-1(UL)
LED Power Supply | 60 W | 12 V | CV | UL
Product description
LED- Betriebsgerät LED- Konverter LED- Treiber
Konstantspannung (CV), UL zertifiziert
Leistung 60Watt
Eingangsspannung: 90-264VAC
Ausgangsspannungsbereich: 12VDC
Ausgangsstrom: 5000mA
Wirkungsgrad: 86%
Gehäuse: 304,6x30,0x16,7mm
Arbeitstemperaturbereich: -20 bis +45°C
EN61347-1, EN61347-2-13, EN55015, EN61000-3-2, EN61000-3-3, EN61547, UL8750
Konstantspannung (CV), UL zertifiziert
Leistung 60Watt
Eingangsspannung: 90-264VAC
Ausgangsspannungsbereich: 12VDC
Ausgangsstrom: 5000mA
Wirkungsgrad: 86%
Gehäuse: 304,6x30,0x16,7mm
Arbeitstemperaturbereich: -20 bis +45°C
EN61347-1, EN61347-2-13, EN55015, EN61000-3-2, EN61000-3-3, EN61547, UL8750
Details
- Manufacturer Neumüller Elektronik
- Product group LED Drivers and Power Supplies
- Article number SNP60-12VF-1(UL)
- Series SNP
- Status Active
Technical data
- Operating mode Constant Voltage
- Performance class ≤ 75 W
- Output current 6250 mA
- LED voltage 12 VDC
- Input voltage 120 - 240 VAC
- Dimmable No
- Programmable No
- Remote Gear No
- ENEC No
- tc 80 °C
- Protection type 20 IP
- Power factor > 0.95
- Length 304.6 mm
- Width 30 mm
- Height 16.7 mm
- Min. operating temperature -20 °C
- Max. operating temperature 45 °C
- Weight 0.01 kg
