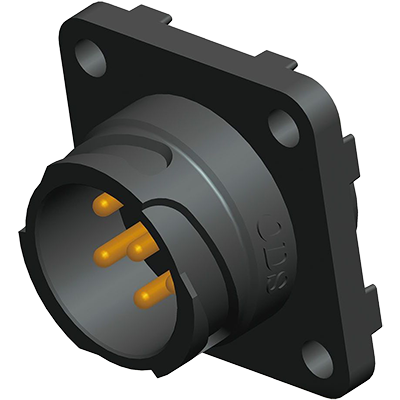

CCCPMXXMXX-KSS7001
Circular Receptacle Front Flange Seat
Product description
• Rugged design, plastic panel mount receptacles
• Various pin counts from 2 to 18 contacts
• Options from 5A to 20A current pin rating
• Hybrid Connectors available -Power+Data in one
• 3-Point Lock mating style
• IPX7 rated for harsh environments
• Various pin counts from 2 to 18 contacts
• Options from 5A to 20A current pin rating
• Hybrid Connectors available -Power+Data in one
• 3-Point Lock mating style
• IPX7 rated for harsh environments
Details
- Manufacturer ODS Electronics
- Product group Round Connectors
- Article number CCCPMXXMXX-KSS7001
- Series CCC
- Status Active
Technical data
- Working Voltage (V rms) 50 | 125 | 250
- Contact Current Rating 2 | 5 | 10 | 20 | 20+1 A
- Contacts 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 | 18 | 3+1
- Flammability Rating UL 94V-0 No
- Hi-Rel No
- Modular No
- Hermetic No
- Waterproof (IP67, IP68, ...) Yes
- Min. operating temperature -40 °C
- Max. operating temperature 105 °C
- Weight 0.01 g
