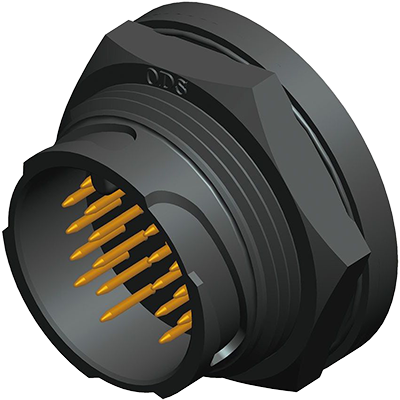

CCDPMXXMBB-KCX7001
Circular Receptacle Front Circular Seat
Product description
• Rugged design, plastic panel mount receptacles
• Higher pin counts from 20 to 23 contacts in 2A current rating
• 3-Point Lock mating style
• IPX7 rated for harsh environments
• Configurable & customizable
Part numbers:
CCDPM23MBB-KCP7001
CCDPM22MBB
• Higher pin counts from 20 to 23 contacts in 2A current rating
• 3-Point Lock mating style
• IPX7 rated for harsh environments
• Configurable & customizable
Part numbers:
CCDPM23MBB-KCP7001
CCDPM22MBB
Details
- Manufacturer ODS Electronics
- Product group Round Connectors
- Article number CCDPMXXMBB-KCX7001
- Series CCD
- Status Active
Technical data
- Working Voltage (V rms) 50
- Contact Current Rating 2 A
- Contacts 20 | 21 | 22 | 23
- Flammability Rating UL 94V-0 No
- Hi-Rel No
- Modular No
- Hermetic No
- Waterproof (IP67, IP68, ...) Yes
- Min. operating temperature -40 °C
- Max. operating temperature 105 °C
- Weight 0.01 g
