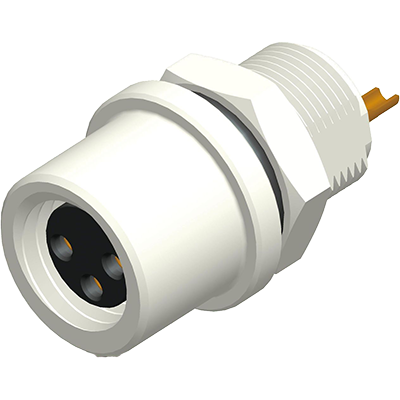

MMERFXXFXX-SCS7001
Sensor Receptacle Rear Circular Seat
Product description
• IEC compliant M8 panel mount receptacles
• Fully potted assemblies provide IPX7 protection for harsh environments
• Available in 3, 4, 5 & S pole version
Part numbers:
MMERF08FAA-SCS7001
MMERF05FCC-SCS7001
MMERF04FCC-SCS7001
MMERF03FCC-SCS7001
• Fully potted assemblies provide IPX7 protection for harsh environments
• Available in 3, 4, 5 & S pole version
Part numbers:
MMERF08FAA-SCS7001
MMERF05FCC-SCS7001
MMERF04FCC-SCS7001
MMERF03FCC-SCS7001
Details
- Manufacturer ODS Electronics
- Product group Sensor Connectors
- Article number MMERFXXFXX-SCS7001
- Series MM
- Status Active
Technical data
- Coding A Code | B Code
- Size M8
- Working Voltage 30 | 60 V rms
- Contact Current Rating 1.5 | 3 A
- Contacts 3 | 4 | 5 | 8
- Gender Female
- Locking System/Mating Style Screw
- Assemble Type Solder
- Insulator Material Metal
- Waterproof (IP67, IP68, ...) Yes
- Min. operating temperature -40 °C
- Max. operating temperature 90 °C
- Weight 0.01 g
