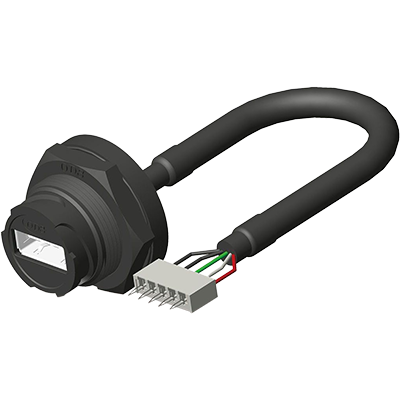

UPCPJX00UA-KCW7001
USB Connector Receptacle Front Circular Seat
Product description
• USB-A 2.0 and 3.0 Available
• PnP - Plug and Play
• IPX7 rated for harsh environments
• Up to 1,000 mating cycles
• Configurable & customizable
Part Numbers:
UPCPJ300UA-KCW7001
UPCPJ200UA-KCW7001
• PnP - Plug and Play
• IPX7 rated for harsh environments
• Up to 1,000 mating cycles
• Configurable & customizable
Part Numbers:
UPCPJ300UA-KCW7001
UPCPJ200UA-KCW7001
Details
- Manufacturer ODS Electronics
- Product group USB Connectors
- Article number UPCPJX00UA-KCW7001
- Series UPC
- Status Active
Technical data
- Category Type-A
- Working Voltage 30 V rms
- Contact Current Rating 1.5 A
- Mating Cycles 1000
- Insulator Material Plastic
- Flammability Rating UL 94V-0 No
- Waterproof (IP67, IP68, ...) Yes
- Min. operating temperature -40 °C
- Max. operating temperature 85 °C
- Weight 0.01 g
