Product description

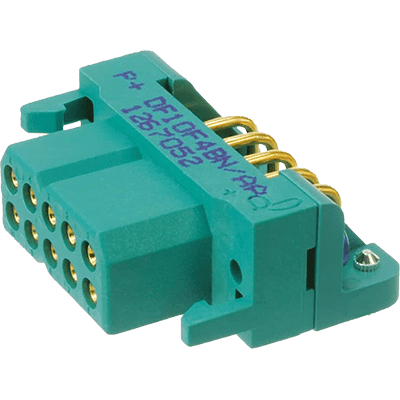

The DF series connectors are economical, miniature power/signal connectors ideal for applications requiring high power density. Dragonfly series connectors offer high density, miniature packaging, Size 16, 20 and 22 contacts and contact current ratings to 20 amperes per contact.
Details
- Manufacturer Positronic
- Product group Power Connectors
- Article number DF Serie
- Series Dragonfly
- Status Active
Technical data
- Series Dragonfly
- Power Contacts 2 | 3 | 7
- Signal Contacts 2 | 10 | 16
- Power Contact Current Rating MAX. 20 A
- Signal Contact Current Rating MAX. 7.5 A
- Mating Cycles 1000
- Insulator Resistance 5 GΩ
- Insulator Material Nylon
- Performance Level Industry
- Flammability Rating UL 94V-0 Yes
- Hi-Rel Yes
- Modular No
- Hermetic No
- Waterproof (IP67, IP68, ...) No
- Weight 0.01 g
