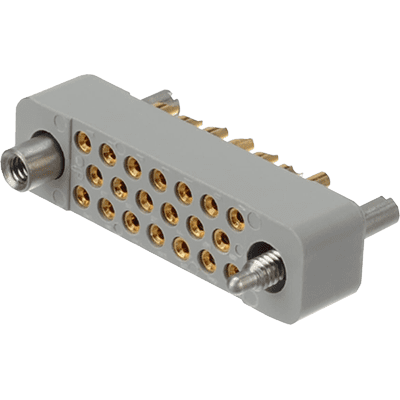

Product description
The SGM series is part of the Mini-Rectangular family of high density connectors for rack & panel applications. SGM series connectors offer straight solder termination.
Details
- Manufacturer Positronic
- Product group Rectangular Connectors
- Article number SGM Serie
- Series Mini-Rectangular
- Status Active
Technical data
- Series Mini-Rectangular
- Working Voltage 250 V rms
- Contact Current Rating 5 A
- Contact Retention 26 N
- Mating Cycles 1000
- Insulator Resistance 5 GΩ
- Performance Level Industry | Military | Aero
- Insulator Material DAP
- Proof Voltage 2200 V rms
- Flammability Rating UL 94V-0 Yes
- Hi-Rel Yes
- Modular No
- Hermetic No
- Waterproof (IP67, IP68, ...) No
- Contact Resistance (max) 4 mΩ
- Weight 0.01 g
