Product description
UVC Modul
Wavelenght: 275nm
PO: typ. 145mW @400mA
Vf. typ. 23Vdc
Package: 20x20mm
Viewing angle: 140°
Wavelenght: 275nm
PO: typ. 145mW @400mA
Vf. typ. 23Vdc
Package: 20x20mm
Viewing angle: 140°
Details
- Manufacturer Seoul Viosys
- Product group UV LEDs COB
- Article number CMD-FSC-COGA
- Status Active
- Stock Lead time on request
Technical data
- Type COB
- Wave Length 275 nm
- UV Range UV-C
- Radiant Flux typ. 300 mW
- Spectrum Half Width 10 nm
- If 800 mA
- Forward Voltage 31 V
- View Angle 140 °
- Package Dimensions 20x20 mm
- Length 20 mm
- Width 20 mm
- Height 3.9 mm
- Min. operating temperature -10 °C
- Max. operating temperature 65 °C

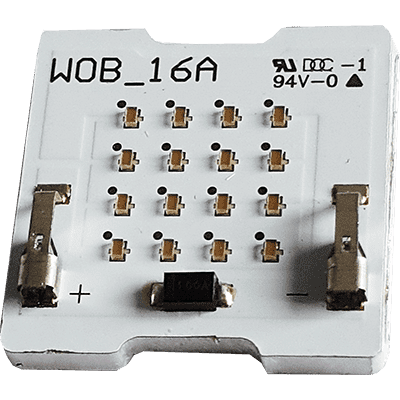

- Housing WOB (Wicop on Board)
