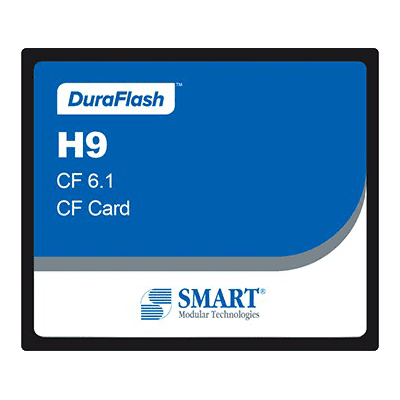

H9 Series
All articles of the H9 series by SMART Modular Technologies
|
|
|||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 1GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 1GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 2GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 2GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 4GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 4GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 64MB | 25 MB/s | 56 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 64MB | 25 MB/s | 56 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 8GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 8GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 128MB | 25 MB/s | 56 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 128MB | 25 MB/s | 56 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 16GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 16GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 256MB | 25 MB/s | 56 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 256MB | 25 MB/s | 56 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 32GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 32GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 512MB | 25 MB/s | 56 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 512MB | 25 MB/s | 56 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 64GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | H9 | CF 6.1 | SLC | PCMCIA / IDE | 64GB | 73 MB/s | 104 MB/s | 3,3 | 5 V | 7000000 | 1500G/0.5ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g |
