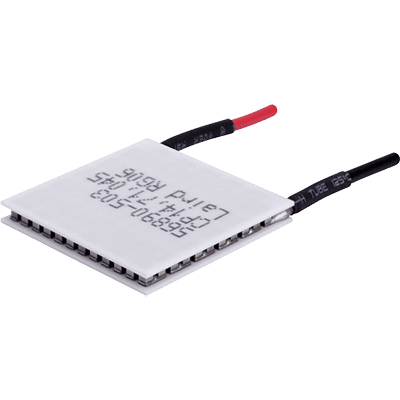

CP14-71-045-L1-RT-W4.5
Peltier Module | 39,9 W | 7,8 V
Product description
The Ceramic Plate CP14-71-045-L1-RT-W4.5 peltier module is a highly reliable and high-performance thermoelectric module. Assembled with Bismuth Telluride semiconductor material and thermally conductive Aluminum Oxide ceramics. The thermoelectric module has a cooling capacity of 39,9 W.
Features:
- Compact geometric sizes
- DC Operation
Laird Part Number: 430032-502
Features:
- Compact geometric sizes
- DC Operation
Laird Part Number: 430032-502
Details
- Manufacturer Tark Thermal Solutions
- Product group Peltier Modules
- Article number CP14-71-045-L1-RT-W4.5
- Series CP
- Status Active
Technical data
- Qc Max 39.9 W
- ΔT Max 70.5 °C
- I Max 8.6 A
- V Max 7.8 V
- AC Resistance 0.79 Ω
- Stages 1
- Finishing Lapped
- Sealing RTV
- Length 30 mm
- Width 30 mm
- Height 3.3 mm
- Min. operating temperature -10 °C
- Max. operating temperature 80 °C
- Weight 0.01 g
