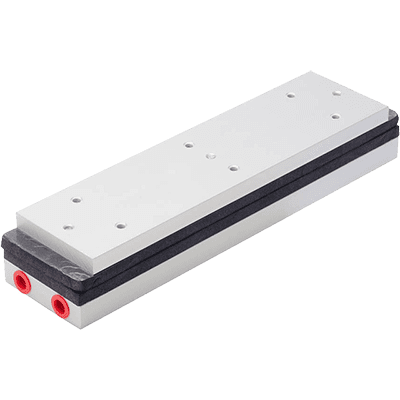

DL-210-24-00
Peltier Cooler | Direct-To-Liquid | 265 W | 24 V
Product description
The Liquid DL-210-24-00 peltier cooler has the ability to cool or heat a coolant flowing through a liquid heat exchanger. Turbulators are inserted into the liquid channels of the heat exchanger to improve the heat transfer. Turbulators may be removed to reduce pressure drop and achieve higher liquid flow rates. The thermoelectric cooler has a cooling capacity of 265 W.
Features:
● Compact design
● Precise temperature control
● Reliable solid-state operation
● DC operation
Laird Part Number: DL-210-24-00-00-00
Features:
● Compact design
● Precise temperature control
● Reliable solid-state operation
● DC operation
Laird Part Number: DL-210-24-00-00-00
Details
- Manufacturer Tark Thermal Solutions
- Product group Peltier Cooler
- Article number DL-210-24-00
- Series Liquid
- Status Active
Technical data
- Qc Max 265 W
- ΔT Max 42 °C
- Supply Voltage 24 V
- Heat transfer type Direct-To-Liquid
- Heat transfer cold side Conduction
- Heat transfer hot side Convection
- Length 240 mm
- Width 60 mm
- Height 39 mm
- Min. operating temperature -40 °C
- Max. operating temperature 62 °C
- Weight 0.01 g
