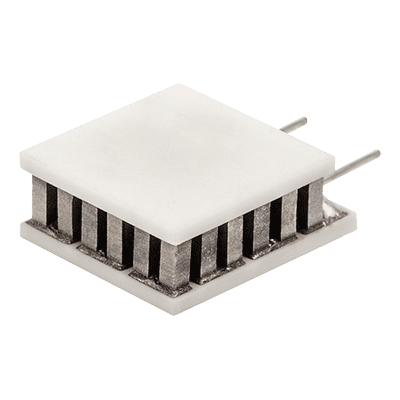

OTX15-31-F2A-0909-20-W2.25
Peltier Module | 3,3 W | 3,6 V
Product description
The OptoTEC™ OTX15-31-F2A-0909-20-W2.25 peltier module is a high-performing miniature thermoelectric module with next-generation thermoelectric materials, enhancing cooling performances over other standard product offerings and is enhanced with updated process controls to guarantee repeatability and longer operating life. With Telcordia GR-468 CORE qualification, the OptoTEC Series can successfully operate under harsh mechanical and environmental test standards. The thermoelectric module has a cooling capacity of 3,3 W.
Features:
- Miniature footprint
- Precise temperature control
- Reliable solid-state operation
- No sound or vibration
Laird Part Number: 387006845
Features:
- Miniature footprint
- Precise temperature control
- Reliable solid-state operation
- No sound or vibration
Laird Part Number: 387006845
Details
- Manufacturer Tark Thermal Solutions
- Product group Peltier Modules
- Article number OTX15-31-F2A-0909-20-W2.25
- Series OptoTEC OTX
- Status Active
Technical data
- Qc Max 3.3 W
- ΔT Max 72.9 °C
- I Max 1.5 A
- V Max 3.6 V
- AC Resistance 2.11 Ω
- Stages 1
- Length 8.8 mm
- Width 11 mm
- Height 2.4 mm
- Min. operating temperature -10 °C
- Max. operating temperature 120 °C
- Weight 0.01 g
