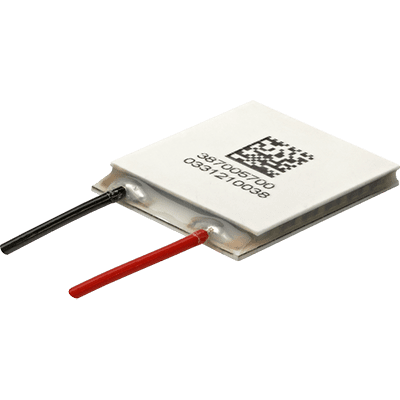

PCX8-7-F2-3030-TA-RT-W6
Peltier Module | 45,4 W | 9,2 V
Product description
The PowerCycling PCX8-7-F2-3030-TA-RT-W6 peltier module uses next-generation thermoelectric materials and an improved design to provide applications with a high-performance and longer-lasting thermoelectric cooler module. Without sacrificing performance, the PCX peltier thermoelectric module is qualified to withstand harsh thermal cycle testing under the latest PCR qualification standards. The thermoelectric module has a cooling capacity of 45,4 W.
Features:
- High thermal cycling capability
- Precise temperature control
- Solid-state operation
- Boosted performance with next-gen material
Laird Part Number: 387005700
Features:
- High thermal cycling capability
- Precise temperature control
- Solid-state operation
- Boosted performance with next-gen material
Laird Part Number: 387005700
Details
- Manufacturer Tark Thermal Solutions
- Product group Peltier Modules
- Article number PCX8-7-F2-3030-TA-RT-W6
- Series PowerCycling PCX
- Status Active
Technical data
- Qc Max 45.4 W
- ΔT Max 82.6 °C
- I Max 8.6 A
- V Max 9.2 V
- AC Resistance 0.95 Ω
- Stages 1
- Finishing Lapped
- Sealing RTV
- Length 34 mm
- Width 30 mm
- Height 3.3 mm
- Min. operating temperature -10 °C
- Max. operating temperature 120 °C
- Weight 0.01 g
