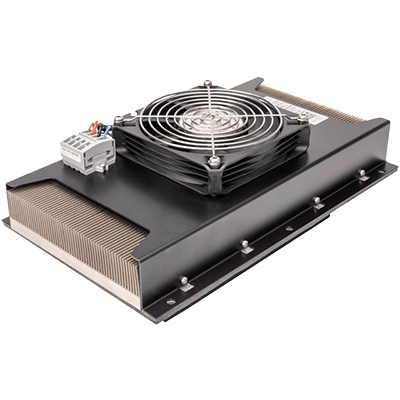

SLA-205-24-02
Peltier Cooler | Liquid-To-Air | 202 W | 24 V
Product description
The SuperCool SLA-205-24-02 is a Liquid-to-Air high performance peltier cooler. The unique, patented (US Patent US2016/0255746 A1) design offers a high-performance hot side heat dissipation mechanism that convects heat more efficiently than conventional heat exchanger technologies, enhancing the cooling performance up to 90%. The smaller form factor design utilizes custom thermoelectric modules to maximize cooling capacity and premium grade fans to minimize noise. Moisture resistant insulation prevents condensation from penetrating into the thermoelectric cooler cavity. The thermoelectric cooler has a cooling capacity of 202 W.
Features
- High performance
- Compact form factor
- Reliable solid-state operation
Laird Part Number: 387000639
Features
- High performance
- Compact form factor
- Reliable solid-state operation
Laird Part Number: 387000639
Details
- Manufacturer Tark Thermal Solutions
- Product group Peltier Cooler
- Article number SLA-205-24-02
- Series SuperCool
- Status Active
Technical data
- Qc Max 202 W
- ΔT Max 40 °C
- Supply Voltage 24 V
- Heat transfer type Liquid-To-Air
- Heat transfer cold side Convection
- Heat transfer hot side Convection
- Length 300 mm
- Width 180 mm
- Height 107 mm
- Min. operating temperature -20 °C
- Max. operating temperature 60 °C
- Weight 0.01 g
