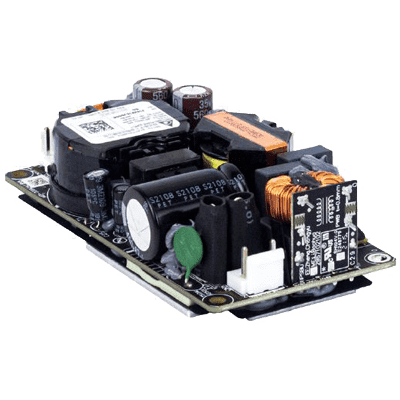

MEP-200A24JBNA
Medical open frame PSU – 24 Volt -200 Watt
Product description
•DCout: 24V
•Power: Up to 200 W power with natural convection cooling
•Size: 111.2 x 62.8 x 32.5 mm
•Optional open frame and enclosed types
•Up to 22.32 W/inch3 power density
•High efficiency up to 95%
•Up to 70 °C Ambient Operation
•Up to 1000KHrs MTBF
•2 x MOPP Isolation
•Suited for Type BF Medical Products
•Class B Conducted and Radiated EMI
•IEC60601-1-2 (4th Edition) Immunity Compliance
•Power: Up to 200 W power with natural convection cooling
•Size: 111.2 x 62.8 x 32.5 mm
•Optional open frame and enclosed types
•Up to 22.32 W/inch3 power density
•High efficiency up to 95%
•Up to 70 °C Ambient Operation
•Up to 1000KHrs MTBF
•2 x MOPP Isolation
•Suited for Type BF Medical Products
•Class B Conducted and Radiated EMI
•IEC60601-1-2 (4th Edition) Immunity Compliance
Details
- Manufacturer Delta Electronics
- Product group Open Frame Power Supplies
- Article number MEP-200A24JBNA
- Series MEP
- Status Active
Technical data
- Type Open Frame
- Power 200 W
- Input Voltage 90 - 264 V
- Output Voltage 24 V
- Approvals Medical | Industry |Household
- Length 101.6 mm
- Width 50.8 mm
- Height 28.5 mm
- Min. operating temperature -30 °C
- Max. operating temperature 70 °C
- Weight 0.21 g
