Product description

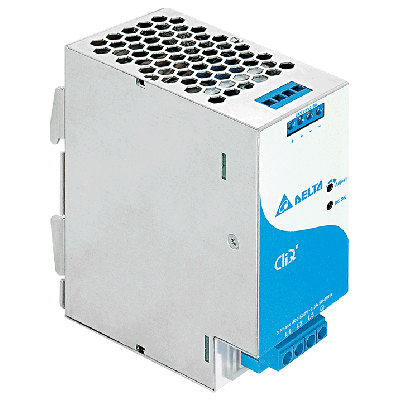

Cliq II DIN Rail mit Power Boost von 150% für 5 Sekunden, kein Derating
Leistung: 60W
Eingangsspannung: 2x 360-600VAC (2-phasig)
Eingangsspannung: 3x 320-600VAC (3-phasig)
Ausgangsspannung: 24VDC
Ausgangsstrom: 2,5A
Arbeitstemperaturbereich: -25 bis +80°C
Gehäuse: 121,0x50,0x117,3mm
UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01 (File no. E315355),
CSA to CSA C22.2 No. 107.1-01 (File No. 181564)
In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01 (File no. E315355),
CSA to CSA C22.2 No. 107.1-01 (File No. 181564)
In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
Leistung: 60W
Eingangsspannung: 2x 360-600VAC (2-phasig)
Eingangsspannung: 3x 320-600VAC (3-phasig)
Ausgangsspannung: 24VDC
Ausgangsstrom: 2,5A
Arbeitstemperaturbereich: -25 bis +80°C
Gehäuse: 121,0x50,0x117,3mm
UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01 (File no. E315355),
CSA to CSA C22.2 No. 107.1-01 (File No. 181564)
In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01 (File no. E315355),
CSA to CSA C22.2 No. 107.1-01 (File No. 181564)
In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
Details
- Manufacturer Delta Electronics
- Product group DIN Rail Power Supplies
- Article number DRP024V060W3BN
- Series DRP
- Status Discontinued
Technical data
- Type DIN Rail
- Power 60 W
- Input Voltage 320 - 600 V
- Output Voltage 24 V
- Features 3 Phase
- Length 121 mm
- Width 50 mm
- Height 117.3 mm
- Min. operating temperature -25 °C
- Max. operating temperature 80 °C
- Weight 0.66 g
