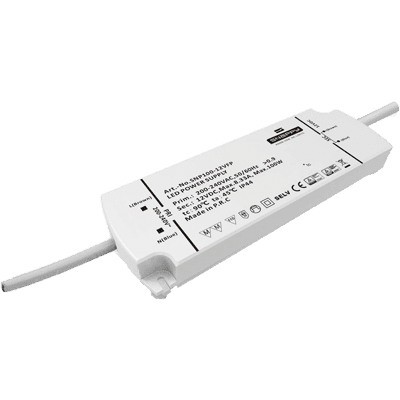

SNP100-12VFP
LED Power Supply | 100 W | 12 V | CV | IP44
Product description
LED- Betriebsgerät LED- Konverter LED- Treiber
Konstantspannung (CV), waterproof IP44
100Watt
Eingangsspannung: 200-240V
Ausgangsspannung: 12VDC
Ausgangsstrom: max. 8330mA
Arbeitstemperatur: -20 bis +50°C
Gehäusemaß: 167,5x58,0x17,5mm
Eingangskabel: H05RN-F 2x1,0mm²
Ausgangskabel: SVT 18AWGx2C
EN61347-1, EN61347-2-13, EN55015, EN61000-3-2, EN61000-4-2,3,4,5,6, EN61547
Konstantspannung (CV), waterproof IP44
100Watt
Eingangsspannung: 200-240V
Ausgangsspannung: 12VDC
Ausgangsstrom: max. 8330mA
Arbeitstemperatur: -20 bis +50°C
Gehäusemaß: 167,5x58,0x17,5mm
Eingangskabel: H05RN-F 2x1,0mm²
Ausgangskabel: SVT 18AWGx2C
EN61347-1, EN61347-2-13, EN55015, EN61000-3-2, EN61000-4-2,3,4,5,6, EN61547
Details
- Manufacturer Neumüller Elektronik
- Product group LED Drivers and Power Supplies
- Article number SNP100-12VFP
- Series SNP
- Status Active
Technical data
- Operating mode Constant Voltage
- Performance class ≤ 100 W
- Output current 8330 mA
- LED voltage 12 VDC
- Input voltage 220 - 240 VAC
- Dimmable No
- Programmable No
- Remote Gear No
- ENEC No
- tc 85 °C
- Protection type 44 IP
- Power factor > 0.9
- Length 167.5 mm
- Width 58 mm
- Height 17.5 mm
- Min. operating temperature -20 °C
- Max. operating temperature 45 °C
- Weight 0.01 g
