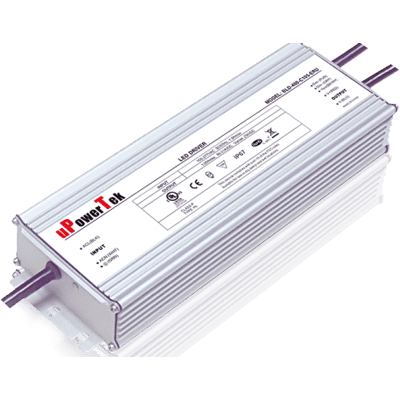

BLD-400-C990-ARS-A00000
LED Driver | 400 W | 24-58 V | 9900 mA | CC
Product description
LED-Stromversorgung, Konstantstrom (constant current)
Leistung: 400W
Dimmfunktion: DALI2.0
Programierbar: NFC
12Vaux: Nein
Dim-Off: Ja
Eingangsspannungsbereich: 90-305VAC
Ausgangsspannungsbereich: 24-58VDC
Ausgangsstrombereich: 6900-9900mA
Schutzklasse: IP67
Kabeltyp: VDE 3 Wire, Class I (EU)
Leistung: 400W
Dimmfunktion: DALI2.0
Programierbar: NFC
12Vaux: Nein
Dim-Off: Ja
Eingangsspannungsbereich: 90-305VAC
Ausgangsspannungsbereich: 24-58VDC
Ausgangsstrombereich: 6900-9900mA
Schutzklasse: IP67
Kabeltyp: VDE 3 Wire, Class I (EU)
Details
- Manufacturer uPowerTek
- Product group LED Drivers and Power Supplies
- Article number BLD-400-C990-ARS-A00000
- Series BLD
- Status Active
Technical data
- Operating mode Constant Current
- Performance class ≤ 400 W
- Output current 9900 mA
- LED voltage range 24 - 58 VDC
- Input voltage 90 - 305 VAC
- Input voltage 127 - 420 VDC
- Dimmable Yes
- Control DALI2.0
- Programmable Yes
- Remote Gear Yes
- ENEC Yes
- tc 90 °C
- Protection type 67 IP
- Power factor > 0.95
- Length 251 mm
- Width 90 mm
- Height 41.5 mm
- Min. operating temperature -40 °C
- Max. operating temperature 75 °C
- Housing Aluminium§Aluminum
- Weight 1.6 g
