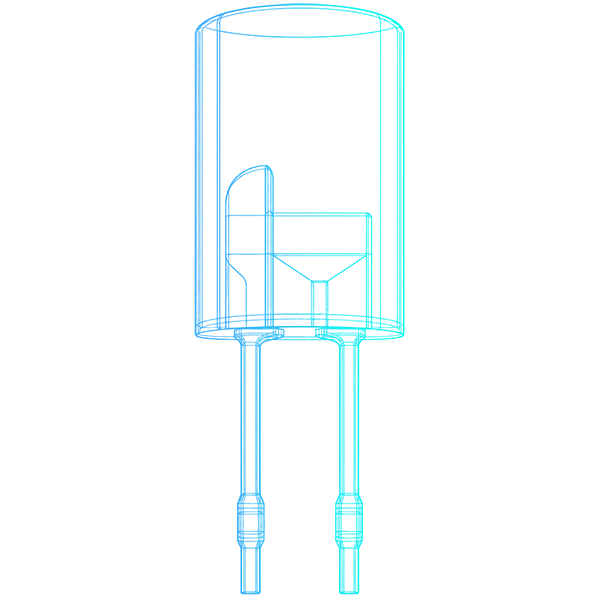

LEDs wired (THT)
THT LEDs (Through Hole Technology) have wire connections for mounting through printed circuit boards and feature integrated optics. They are suitable for robust applications, manual assembly, and wave soldering. Whether white or colored, standard or HiRel design, THT LEDs offer beam angles, mechanical stability, and reliable performance.
|
|
|||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bivar | 1.8MM | Orange | 605 nm | – | 20 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 50 ° | No | – | – | – | – | – | 1.8mm | – | |
| Bivar | 1.8MM | Hyper Red | Green | 640 | 568 nm | – | 4 | 4 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 70 ° | No | – | – | – | – | – | 1.8mm | – | |
| Bivar | 1.8MM | Yellow | Green | 590 | 568 nm | – | 3,5 | 4,5 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 50 ° | No | – | – | – | – | – | 1.8mm | – | |
| Bivar | 1.8MM | Deep Blue | 428 nm | – | 10 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 50 ° | No | – | – | – | – | – | 1.8mm | – | |
| Bivar | 1.8MM | Green | 568 nm | – | 20 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 50 ° | No | – | – | – | – | – | 1.8mm | – | |
| Bivar | 1.8MM | Green | 568 nm | – | 2 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 50 ° | No | – | – | – | – | – | 1.8mm | – | |
| Bivar | 1.8MM | Red | 625 nm | – | 20 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 50 ° | No | – | – | – | – | – | 1.8mm | – | |
| Bivar | 1.8MM | Red | 625 nm | – | 2 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 50 ° | No | – | – | – | – | – | 1.8mm | – | |
| Bivar | 1.8MM | Far Red | 700 nm | – | 2 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 50 ° | No | – | – | – | – | – | 1.8mm | – | |
| Bivar | 1.8MM | Yellow | 590 nm | – | 10 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 50 ° | No | – | – | – | – | – | 1.8mm | – | |
| Bivar | 1.8MM | Yellow | 590 nm | – | 1 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 50 ° | No | – | – | – | – | – | 1.8mm | – | |
| Bivar | 3MM (T-1) | Orange | 605 nm | – | 40 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 30 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Orange | 605 nm | – | 25 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 35 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Orange | 605 nm | – | 25 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Red | Green | 625 | 568 nm | – | 6 | 6 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 45 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Red | Green | 625 | 568 nm | – | 6 | 6 mcd | – | – | 0,04 | 0,042 W | 2,0 | 2,1 V | 20 mA | – | 45 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Red | Green | 625 | 568 nm | – | 30 | 30 mcd | – | – | 0,04 | 0,042 W | 2,0 | 2,1 V | 20 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Red | Yellow | 625 | 590 nm | – | 30 | 20 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Yellow | Green | 590 | 568 nm | – | 4 | 6 mcd | – | – | 0,04 | 0,042 W | 2,0 | 2,1 V | 20 mA | – | 45 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Yellow | Green | 590 | 568 nm | – | 20 | 30 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Red | Green | 625 | 568 nm | – | 6 | 6 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 45 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Yellow | Green | 590 | 568 nm | – | 4 | 6 mcd | – | – | 0,04 | 0,042 W | 2,0 | 2,1 V | 20 mA | – | 45 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Yellow | Green | 590 | 568 nm | – | 4 | 6 mcd | – | – | 0,04 | 0,042 W | 2,0 | 2,1 V | 20 mA | – | 45 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Red | Green | 625 | 568 nm | – | 8 | 8 mcd | – | – | 0,06 | 0,063 W | 2,0 | 2,1 V | 30 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Deep Blue | 428 nm | – | 10 mcd | – | – | 0.08 W | 4 V | 20 mA | – | 35 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Deep Blue | 428 nm | – | 10 mcd | – | – | 0.08 W | 4 V | 20 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | True Green | 525 nm | – | 2000 mcd | – | – | 0.07 W | 3.5 V | 20 mA | – | 30 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Green | 568 nm | – | 40 mcd | – | – | 0.04 W | 2.1 V | 20 mA | – | 30 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Green | 568 nm | – | 25 mcd | – | – | 0.04 W | 2.1 V | 20 mA | – | 35 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Green | 568 nm | – | 25 mcd | – | – | 0.04 W | 2.1 V | 20 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Green | 568 nm | – | 4 mcd | – | – | 0 W | 2.1 V | 2 mA | – | 35 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Green | 568 nm | – | 2 mcd | – | – | 0 W | 2.1 V | 2 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Red | 625 nm | – | 30 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 35 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Red | 625 nm | – | 30 mcd | – | – | 0.04 W | 2 V | 20 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Red | 625 nm | – | 2.5 mcd | – | – | 0 W | 2 V | 2 mA | – | 35 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Red | 625 nm | – | 2.5 mcd | – | – | 0 W | 2 V | 2 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Far Red | 700 nm | – | 2 mcd | – | – | 0.04 W | 2.1 V | 20 mA | – | 35 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Far Red | 700 nm | – | 2 mcd | – | – | 0.04 W | 2.1 V | 20 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Far Red | 700 nm | – | 0.5 mcd | – | – | 0 W | 2.1 V | 2 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Orange | 605 nm | – | 100 mcd | – | – | 0.04 W | 1.8 V | 20 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Hyper Red | Green | 645 | 568 nm | – | 12 | 8 mcd | – | – | 0,034 | 0,042 W | 1,7 | 2,1 V | 20 mA | – | 45 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Hyper Red | Green | 660 | 568 nm | – | 120 | 50 mcd | – | – | 0,034 | 0,042 W | 1,7 | 2,1 V | 20 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Hyper Red | Green | 645 | 568 nm | – | 100 | 60 mcd | – | – | 0,034 | 0,042 W | 1,7 | 2,1 V | 20 mA | – | 20 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Green | 568 nm | – | 50 mcd | – | – | 0.04 W | 2.1 V | 20 mA | – | 20 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Green | 568 nm | – | 50 mcd | – | – | 0.04 W | 2.1 V | 20 mA | – | 30 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Green | 568 nm | – | 30 mcd | – | – | 0.04 W | 2.1 V | 20 mA | – | 40 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Hyper Red | 645 nm | – | 60 mcd | – | – | 0.03 W | 1.7 V | 20 mA | – | 20 ° | No | – | – | – | – | – | 3mm (T-1) | – | |
| Bivar | 3MM (T-1) | Hyper Red | 645 nm | – | 60 mcd | – | – | 0.03 W | 1.7 V | 20 mA | – | 30 ° | No | – | – | – | – | – | 3mm (T-1) | – |
