SNP Series

All articles of the SNP series by Neumüller Elektronik

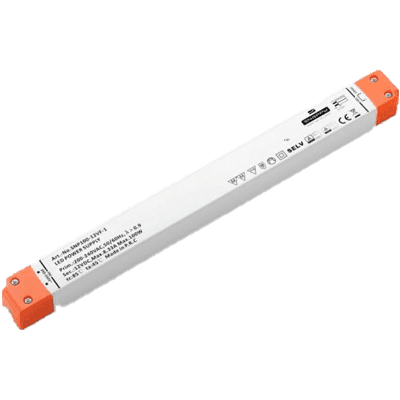

SNP100-12VF-1 LED Power Supply \| 100 W \| 12 V \| CV	Neumüller Elektronik	Constant Voltage	100 W	8333 mA	12 VDC	–	No	No	No	No	80 °C	20 IP	0.9	320.6 mm	30 mm	18.2 mm	-20 °C	45 °C	0.22 g
SNP100-12VF-1(UL) LED Power Supply \| 100 W \| 12 V \| CV \| UL	Neumüller Elektronik	Constant Voltage	100 W	8330 mA	12 VDC	120 - 240 VAC	No	No	No	No	80 °C	20 IP	0.9	322.6 mm	30.1 mm	21.5 mm	-20 °C	45 °C	0.01 g
SNP100-12VFP LED Power Supply \| 100 W \| 12 V \| CV \| IP44	Neumüller Elektronik	Constant Voltage	100 W	8330 mA	12 VDC	220 - 240 VAC	No	No	No	No	85 °C	44 IP	0.9	167.5 mm	58 mm	17.5 mm	-20 °C	45 °C	0.01 g
SNP100-12VFP-1 LED Power Supply \| 100 W \| 12 V \| CV \| IP66	Neumüller Elektronik	Constant Voltage	100 W	8330 mA	12 VDC	220 - 240 VAC	No	No	No	No	85 °C	66 IP	–	315.1 mm	30 mm	20 mm	-20 °C	50 °C	0.01 g
SNP100-24VF-1(UL) LED Power Supply \| 100 W \| 24 V \| CV \| UL	Neumüller Elektronik	Constant Voltage	100 W	4160 mA	24 VDC	108 - 132 VAC	No	No	No	No	80 °C	20 IP	0.95	322.6 mm	30.1 mm	21.5 mm	-20 °C	45 °C	0.1 g
SNP100-24VFP LED Power Supply \| 100 W \|24 V \| CV \| IP44	Neumüller Elektronik	Constant Voltage	100 W	4170 mA	24 VDC	220 - 240 VAC	No	No	No	No	85 °C	44 IP	0.9	167.5 mm	58 mm	17.5 mm	-20 °C	45 °C	0.41 g
SNP100-24VFP-1 LED Power Supply \| 100 W \| 24 V \| CV \| IP66	Neumüller Elektronik	Constant Voltage	100 W	4170 mA	24 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	66 IP	0.9	315.1 mm	30 mm	20 mm	-20 °C	50 °C	0.01 g
SNP12-350IF LED Power Supply \| 12 W \| 34 V \| 350 mA \| CC	Neumüller Elektronik	Constant Voltage	20 W	350 mA	34 VDC	220 - 240 VAC	No	No	No	No	80 °C	20 IP	0.5	127.3 mm	49.8 mm	10.7 mm	-20 °C	45 °C	0.01 g
SNP150-12VFP-1 LED Power Supply \| 132 W \| 12 V \| CV \| IP66	Neumüller Elektronik	Constant Voltage	150 W	–	12 VDC	220 - 240 VAC	No	No	Yes	No	90 °C	66 IP	0.9	365 mm	30 mm	23 mm	-20 °C	45 °C	0.45 g
SNP150-24VF-1 LED Power Supply \| 150 W \| 24 V \| 6250 mA \| CV	Neumüller Elektronik	Constant Voltage	150 W	–	24 VDC	220 - 240 VAC	No	No	Yes	No	90 °C	20 IP	0.9	322.6 mm	30.1 mm	21.5 mm	-20 °C	45 °C	0.16 g
SNP150-24VFP-1 LED Power Supply \| 150 W \| 24 V \| CV \| IP66	Neumüller Elektronik	Constant Voltage	150 W	6250 mA	24 VDC	220 - 240 VAC	No	No	No	No	–	66 IP	–	356 mm	30 mm	23 mm	-20 °C	45 °C	0.45 g
SNP200-24VL LED Power Supply \| 200 W \| 24 V \| CV	Neumüller Elektronik	Constant Voltage	200 W	8330 mA	24 VDC	220 - 240 VAC	No	No	No	No	80 °C	20 IP	0.9	195 mm	67.1 mm	31.2 mm	-20 °C	45 °C	0.01 g
SNP30-24VF(UE) LED Power Supply \| 30 W \| 24 V \| 1250 mA \| CV	Neumüller Elektronik	Constant Voltage	30 W	1250 mA	24 VDC	120 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	156 mm	17 mm	50 mm	-20 °C	45 °C	0.01 g
SNP30-24VF-2 LED Power Supply \| 30 W \| 24 V \| CV	Neumüller Elektronik	Constant Voltage	30 W	1250 mA	24 VDC	220 - 240 VAC	No	No	No	No	–	–	–	251 mm	30 mm	16.7 mm	-20 °C	45 °C	0.13 g
SNP30-24VF-3 LED Power Supply \| 30 W \| 24 V \| 1250 mA \| CV	Neumüller Elektronik	Constant Voltage	30 W	1250 mA	24 VDC	220 - 240 VAC	No	No	Yes	No	80 °C	20 IP	–	156 mm	50 mm	17 mm	-20 °C	45 °C	0.01 g
SNP30-24VFP LED Power Supply \| 30 W \| 24 V \| CV	Neumüller Elektronik	Constant Voltage	30 W	1250 mA	24 VDC	220 - 240 VAC	No	No	Yes	No	80 °C	44 IP	0.9	158 mm	51 mm	17.3 mm	-20 °C	45 °C	0.01 g
SNP40-12VF LED Power Supply \| 40 W \| 12 V \| 3330 mA \| CV	Neumüller Elektronik	Constant Voltage	40 W	3330 mA	12 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	–	160 mm	58 mm	18 mm	-20 °C	45 °C	0.01 g
SNP40-24VF(UE) LED Power Supply \| 40 W \| 24 V \| 1667 mA \| CV	Neumüller Elektronik	Constant Voltage	40 W	1667 mA	24 VDC	100 - 240 VAC	No	No	Yes	No	80 °C	20 IP	0.9	156 mm	50 mm	17 mm	-20 °C	45 °C	0.17 g
SNP45-24VF-1 LED Power Supply \| 45 W \| 24 V \| 1870 mA \| CV	Neumüller Elektronik	Constant Voltage	50 W	1870 mA	24 VDC	220 - 240 VAC	No	No	No	No	80 °C	20 IP	0.9	251 mm	30 mm	16 mm	-20 °C	45 °C	0.01 g
SNP50-12VF-1 LED Power Supply \| 50 W \| 12 V \| 4200 mA \| CV	Neumüller Elektronik	Constant Voltage	50 W	4200 mA	12 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	–	159.9 mm	57.8 mm	18 mm	-20 °C	45 °C	0.15 g
SNP50-24VF-1 LED Power Supply \| 50 W \| 24 V \| 2080 mA \| CV	Neumüller Elektronik	Constant Voltage	50 W	2080 mA	24 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	–	159.9 mm	57.8 mm	18 mm	-20 °C	45 °C	0.15 g
SNP6-24VF LED Power Supply \| 6 W \| 24 V \| 250 mA \| CV	Neumüller Elektronik	Constant Voltage	10 W	250 mA	24 VDC	220 - 240 VAC	No	No	No	No	80 °C	20 IP	–	98.5 mm	45.6 mm	10.7 mm	-20 °C	45 °C	0.01 g
SNP60-12VF-1(UL) LED Power Supply \| 60 W \| 12 V \| CV \| UL	Neumüller Elektronik	Constant Voltage	75 W	6250 mA	12 VDC	120 - 240 VAC	No	No	No	No	80 °C	20 IP	0.95	304.6 mm	30 mm	16.7 mm	-20 °C	45 °C	0.01 g
SNP60-12VFB-1 LED Power Supply \| 60 W \| 12 V \| CV	Neumüller Elektronik	Constant Voltage	75 W	5000 mA	12 VDC	220 - 240 VAC	No	No	No	No	80 °C	20 IP	0.9	302 mm	30 mm	16.75 mm	-20 °C	50 °C	0.01 g
SNP60-12VFP-1 LED Power Supply \| 60 W \| 12 V \| CV \| IP66	Neumüller Elektronik	Constant Voltage	75 W	5000 mA	12 VDC	220 - 240 VAC	No	No	No	No	–	66 IP	–	297 mm	30 mm	18 mm	-20 °C	45 °C	0.01 g
SNP60-24VF-1(UL) LED Power Supply \| 60 W \| 24 V \| CV \| UL	Neumüller Elektronik	Constant Voltage	75 W	2500 mA	24 VDC	120 - 240 VAC	No	No	Yes	No	80 °C	20 IP	0.95	104.6 mm	30 mm	16.7 mm	-20 °C	45 °C	0.01 g
SNP60-24VFB-1 LED Power Supply \| 60 W \| 24 V \| CV	Neumüller Elektronik	Constant Voltage	75 W	2500 mA	24 VDC	220 - 240 VAC	No	No	No	No	80 °C	20 IP	0.9	302 mm	30 mm	16.75 mm	-20 °C	50 °C	0.01 g
SNP60-24VFP-1 LED Power Supply \| 60 W \| 24 V \| CV \| IP66	Neumüller Elektronik	Constant Voltage	75 W	2500 mA	24 VDC	220 - 240 VAC	No	No	No	No	–	66 IP	–	297 mm	30 mm	18 mm	-20 °C	45 °C	0.01 g
SNP75-12VL-E LED Power Supply \| 75 W \| 12 V \| 5830 mA \| CV	Neumüller Elektronik	Constant Voltage	75 W	5830 mA	12 VDC	220 - 240 VAC	No	No	Yes	No	80 °C	20 IP	0.9	170 mm	44.5 mm	28.2 mm	-20 °C	45 °C	0.01 g
SNP75-24VL(UE) LED Power Supply \| 75 W \| 24 V \| 3125 mA \| CV	Neumüller Elektronik	Constant Voltage	75 W	3125 mA	24 VDC	120 - 240 VAC	No	No	Yes	No	80 °C	20 IP	0.9	170.4 mm	56.5 mm	31 mm	-20 °C	45 °C	0.01 g
SNP75-24VL-A LED Power Supply \| 75 W \| 24 V \| 3125 mA \| CV	Neumüller Elektronik	Constant Voltage	75 W	3125 mA	24 VDC	220 - 240 VAC	No	No	Yes	No	80 °C	20 IP	–	200.5 mm	62.5 mm	30 mm	-20 °C	45 °C	0.01 g
SNP75-24VL-E LED Power Supply \| 75 W \| 24 V \| 3130 mA \| CV	Neumüller Elektronik	Constant Voltage	75 W	3130 mA	24 VDC	220 - 240 VAC	No	No	Yes	No	80 °C	20 IP	0.9	170 mm	44.5 mm	28.2 mm	-20 °C	45 °C	0.25 g
