UV LED Modules

UV modules are available as standard or custom solutions. Our engineers develop tailored UV systems including LED selection, PCB material, optics and electrical and mechanical components. Suitable for prototypes, small batches and volume production - with documented specifications, quality assurance and manufacturing in Germany.


CMD-T5C-CO1A UV-C LED Module \| 275 nm \| T5	Seoul Viosys	275 nm	UV-C	7.5 mW	10 nm	100 mA	6 V	–	d=16 h=54 mm	-20 °C	60 °C	T5	0.08 g

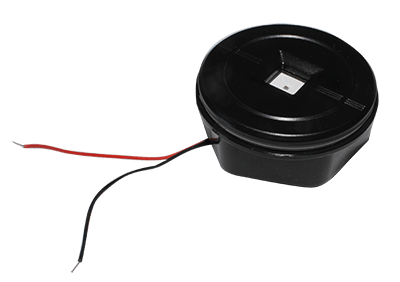

CMW-FCC-CO1A UV-C LED Module \| 275 nm \| IPX8	Seoul Viosys	275 nm	UV-C	7 mW	10 nm	100 mA	6 V	–	d=46, h=16 mm	-20 °C	60 °C	FCC	0.01 g
SOPN-MUAAP1115 UV-B LED Module \| 310 nm \| AAP LED on PCB	Neumüller Elektronik	310 nm	UV-B	9.5 mW	10 nm	200 mA	5.5 V	120 °	d=20 mm	-10 °C	85 °C	AAP6363	0 g
SOPN-MUAAP120 UV-A LED Module \| 365 nm \| AAP LED on PCB	Neumüller Elektronik	365 nm	UV-A	820 mW	9 nm	500 mA	3.8 V	110 °	d=20 mm	-10 °C	85 °C	AAP6363	0.01 g
SOPN-MUAAP130 UV-A LED Module \| 375 nm \| AAP LED on PCB	Neumüller Elektronik	375 nm	UV-A	810 mW	9 nm	500 mA	3.8 V	110 °	d=20 mm	-10 °C	85 °C	AAP6363	0.01 g
SOPN-MUAAP140 UV-A LED Module \| 385 nm \| AAP LED on PCB	Neumüller Elektronik	385 nm	UV-A	900 mW	10 nm	500 mA	3.6 V	110 °	d=20 mm	-10 °C	85 °C	AAP6363	0.01 g
SOPN-MUAAP150 UV-A LED Module \| 395 nm \| AAP LED on PCB	Neumüller Elektronik	395 nm	UV-A	900 mW	11 nm	500 mA	3.6 V	110 °	d=20 mm	-10 °C	85 °C	AAP6363	0.01 g
SOPN-MUAAP170 UV-A LED Module \| 405 nm \| AAP LED on PCB	Neumüller Elektronik	405 nm	UV-A	850 mW	12 nm	500 mA	3.6 V	110 °	d=20 mm	-10 °C	85 °C	AAP6363	0.01 g
SOPN-MUAAP1CV275 UV-C LED Module \| 275 nm \| AAP LED on PCB	Neumüller Elektronik	275 nm	UV-C	19 mW	10 nm	200 mA	5.5 V	120 °	d=20 mm	-10 °C	85 °C	AAP6363	0.01 g
SOPN-MUAAP4110 UV-C LED Module \| 275 nm \| AAP LED on PCB	Neumüller Elektronik	275 nm	UV-C	60 mW	11 nm	600 mA	6.4 V	120 °	d=20 mm	-10 °C	85 °C	AAP6363	0.01 g
SOPN-MUCA35110 UV-C LED Module \| 275 nm \| 3535 LED on STAR-PCB	Neumüller Elektronik	275 nm	UV-C	3 mW	11 nm	30 mA	6.75 V	120 °	d=20 mm	-10 °C	85 °C	CA3535	0.01 g
SOPN-MUCA35115 UV-B LED Module \| 310 nm \| 3535 LED on STAR-PCB	Neumüller Elektronik	310 nm	UV-B	1.3 mW	11 nm	30 mA	6 V	120 °	d=20 mm	-10 °C	85 °C	CA3535	0 g
SOPN-MUCA35120 UV-A LED Module \| 365 nm \| 3535 LED on PCB	Neumüller Elektronik	365 nm	UV-A	1400 mW	10 nm	1000 mA	3.7 V	115 °	3,5 x 3,5 mm	-10 °C	85 °C	CA3535	0 g
SOPN-MUCA35150 UV-A LED Module \| 395 nm \| 3535 LED on PCB	Neumüller Elektronik	395 nm	UV-A	1600 mW	10 nm	1000 mA	3.6 V	115 °	d=20 mm	-10 °C	85 °C	CA3535	0.01 g
SOPN-MUCA35170 UV-A LED Module \| 405 nm \| 3535 LED on PCB	Neumüller Elektronik	405 nm	UV-A	1600 mW	10 nm	1000 mA	3.7 V	115 °	3,5 x 3,5 mm	-10 °C	85 °C	CA3535	0 g
SOPN-MUZ5120 UV-A LED Module \| 365 nm \| Z5 LED on PCB	Neumüller Elektronik	365 nm	UV-A	1000 mW	10 nm	500 mA	3.7 V	120 °	d=20 mm	-10 °C	85 °C	Z5	0 g
SOPN-MUZ5120G UV-A LED Module \| 365 nm \| Z5 LED on PCB	Neumüller Elektronik	365 nm	UV-A	1800 mW	9 nm	1000 mA	3.7 V	65 °	d=20 mm	-10 °C	85 °C	Z5	0.01 g
SOPN-MUZ5140 UV-A LED Module \| 385 nm \| Z5 LED on PCB	Neumüller Elektronik	385 nm	UV-A	1200 mW	10 nm	500 mA	3.5 V	120 °	d=20 mm	-10 °C	85 °C	Z5	0.01 g
SOPN-MUZ5150 UV-A LED Module \| 395 nm \| Z5 LED on PCB	Neumüller Elektronik	395 nm	UV-A	1250 mW	12 nm	500 mA	3.5 V	120 °	d=20 mm	-10 °C	85 °C	Z5	0.01 g
SOPN-MUZ5170 UV-A LED Module \| 405 nm \| Z5 LED on PCB	Neumüller Elektronik	405 nm	UV-A	1160 mW	14 nm	500 mA	3.6 V	120 °	d=20 mm	-10 °C	85 °C	Z5	0.01 g
SOPN-MUZ5170D UV-A LED Module \| 405 nm \| Z5 LED on PCB	Neumüller Elektronik	405 nm	UV-A	1200 mW	15 nm	500 mA	3.6 V	45 °	d=20 mm	-10 °C	85 °C	Z5	0.01 g
SOPN-MUZ5170G UV-A LED Module \| 405 nm \| Z5 LED on PCB	Neumüller Elektronik	405 nm	UV-A	2050 mW	15 nm	1000 mA	3.5 V	45 °	d=20 mm	-10 °C	85 °C	Z5	0 g
SOPN-MUZ5180 UV-A LED Module \| 420 nm \| Z5 LED on PCB	Neumüller Elektronik	420 nm	UV-A	970 mW	18 nm	500 mA	3.6 V	120 °	d=20 mm	-10 °C	85 °C	Z5	0.01 g
