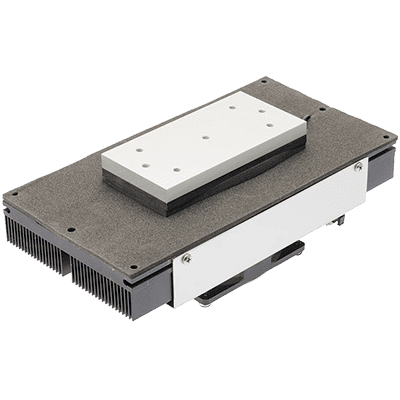

DAC-060-24-02 - Laird Thermal Systems

DAC-060-24-02
Peltier Cooler | Direct-To-Air | 58 W | 24 V
The Cascade DAC-060-24-02 peltier cooler is a custom designed multi-stage cascade that achieve high cooling performance (Qc) at high temperature differences (ΔT). The cold side mechanism can transfer heat by conduction (cold plate). The thermoelectric cooler has a cooling capacity of 58 W.

Features:
- High heat pumping capacity at cold temperatures
- Precise temperature control
- Reliable solid-state operation
- Compact design

Laird Part Number: DAC060-24-02-00-00
Manufacturer:
Productgroup: Peltier CoolerPeltier Cooler
Part Number: DAC-060-24-02
Series: Cascade
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Qc Max : 58 W
ΔT Max : 69 °C
Supply Voltage : 24 V
Heat transfer type : Direct-To-Air
Heat transfer cold side: Conduction
Heat transfer hot side: Convection
  Length: 230 mm
  Width: 122 mm
  Heigth: 91 mm
  Min. operating temperature: -10 °C
  Max. operating temperature: 48 °C

Hint: current revision of the supplier datasheet is applicable
