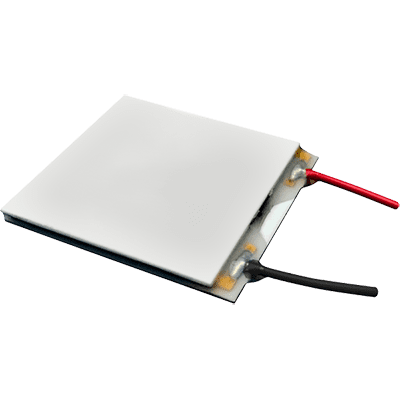

Peltier Module | 142,8 W | 16,6 V
The HiTemp ETX15-12-F2-4040-TA-RT-W6 peltier module increases cooling capacities by up to 10% with its advanced thermoelectric materials. Featuring an upgraded thermal insulating barrier that carries a maximum temperature differential (ΔT) of 83º, the HiTemp cooler utilizes an enhanced thermoelectric module assembly that eliminates performance degradation in applications set in high temperatures. The thermoelectric module has a cooling capacity of 142,8 W.Features: - High-temperature operation - Reliable solid-state - No sound or vibration - Environmentally-friendly Laird Part Number: 387004927 |
|
Manufacturer: | Laird Thermal Systems | |
Productgroup: | Peltier Modules | |
Part Number: | ETX15-12-F2-4040-TA-RT-W6 | |
Series: | HiTemp ETX | |
Datasheet: | Open datasheet | |
State: | 🟢 Active |
Note article Request article |
Qc Max : | 142.8 W | ||
ΔT Max : | 83.2 °C | ||
I Max : | 14.6 A | ||
V Max : | 16.6 V | ||
AC Resistance : | 1.01 Ω | ||
Stages: | 1 | ||
Finishing: | Lapped | ||
Sealing: | RTV | ||
Length: | 44 mm | ||
Width: | 40 mm | ||
Heigth: | 2.8 mm | ||
Min. operating temperature: | -10 °C | ||
Max. operating temperature: | 150 °C |
|
Hint: current revision of the supplier datasheet is applicable
