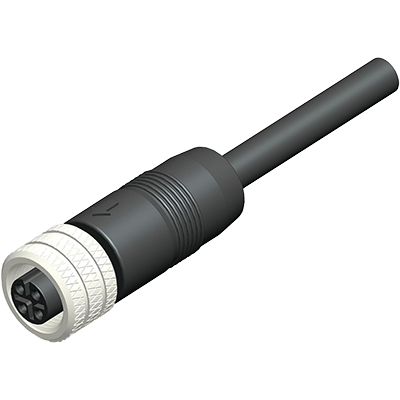

Sensor Connector Cable Assembly Straight
• IEC compliant M12 cable assemblies with threaded couplers • Fully shielded for high noise immunity • IPX7 rated for harsh environments • Available in 2, 3, 4 & 5 pole versions • Available in A B, & D-Coded to fit industry applications • Wide select |
|
Manufacturer: | ODS Electronics | |
Productgroup: | Sensor Connectors | |
Part Number: | MSXBFXXFXX-SLC7XXX | |
Series: | MS | |
Datasheet: | Open datasheet | |
State: | 🟢 Active |
Note article Request article |
Coding: | A Code | B Code | D Code | ||
Size: | M12 | ||
Working Voltage : | 60 | 250 V rms | ||
Contact Current Rating : | 5 A | ||
Contacts: | 2 | 3 | 4 | 5 | ||
Gender: | Female | ||
Locking System/Mating Style: | Screw | ||
Assemble Type: | Cable End Cut | ||
Insulator Material: | Metal | ||
Waterproof (IP67, IP68, ...): | Yes | ||
Min. operating temperature: | -20 °C | ||
Max. operating temperature: | 80 °C |
|
Hint: current revision of the supplier datasheet is applicable
