OTX08-08-F0-0303-11-W2.25 - Laird Thermal Systems

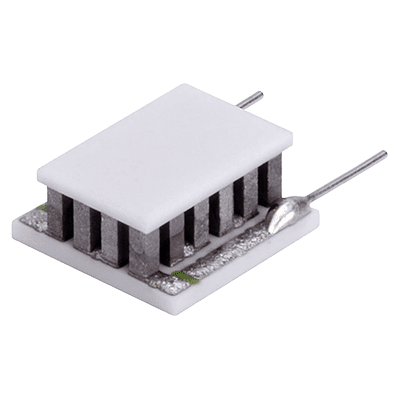

OTX08-08-F0-0303-11-W2.25
Peltier Module | 0,4 W | 0,9 V
The OptoTEC™ OTX08-08-F0-0303-11-W2.25 peltier module is a high-performing miniature thermoelectric module with next-generation thermoelectric materials, enhancing cooling performances over other standard product offerings and is enhanced with updated process controls to guarantee repeatability and longer operating life. With Telcordia GR-468 CORE qualification, the OptoTEC Series can successfully operate under harsh mechanical and environmental test standards. The thermoelectric module has a cooling capacity of 0,4 W.

Features:
- Miniature footprint
- Precise temperature control
- Reliable solid-state operation
- No sound or vibration

Laird Part Number: 387006791
Manufacturer:
Productgroup: Peltier ModulesPeltier Modules
Part Number: OTX08-08-F0-0303-11-W2.25
Series: OptoTEC OTX
Datasheet: PDF OTX08-08-F0-0303-11-W2.25 | Laird Thermal SystemsOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Qc Max : 0.4 W
ΔT Max : 72.9 °C
I Max : 0.8 A
V Max : 0.9 V
AC Resistance : 1.02 Ω
Stages: 1
Finishing: Lapped
  Length: 3.3 mm
  Width: 4.9 mm
  Heigth: 2.6 mm
  Min. operating temperature: -10 °C
  Max. operating temperature: 120 °C

Hint: current revision of the supplier datasheet is applicable
