OTX15-30-F2A-0610-11-W2.25 - Laird Thermal Systems

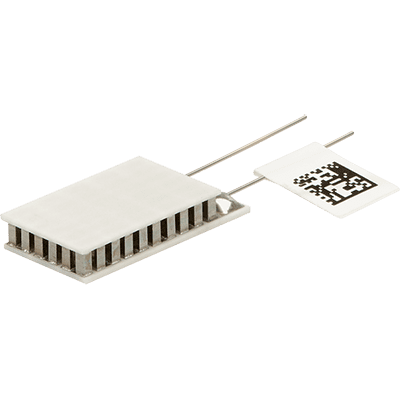

OTX15-30-F2A-0610-11-W2.25
Peltier Module | 3,1 W | 3,5 V
The OptoTEC™ OTX15-30-F2A-0610-11-W2.25 peltier module is a high-performing miniature thermoelectric module with next-generation thermoelectric materials, enhancing cooling performances over other standard product offerings and is enhanced with updated process controls to guarantee repeatability and longer operating life. With Telcordia GR-468 CORE qualification, the OptoTEC Series can successfully operate under harsh mechanical and environmental test standards. The thermoelectric module has a cooling capacity of 3,1 W.

Features:
- Miniature footprint
- Precise temperature control
- Reliable solid-state operation
- No sound or vibration

Laird Part Number: 387006839
Manufacturer:
Productgroup: Peltier ModulesPeltier Modules
Part Number: OTX15-30-F2A-0610-11-W2.25
Series: OptoTEC OTX
Datasheet: PDF OTX15-30-F2A-0610-11-W2.25 | Laird Thermal SystemsOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Qc Max : 3.1 W
ΔT Max : 72.9 °C
I Max : 1.5 A
V Max : 3.5 V
AC Resistance : 2.04 Ω
Stages: 1
Finishing: Lapped
  Length: 10.3 mm
  Width: 12.3 mm
  Heigth: 2 mm
  Min. operating temperature: -10 °C
  Max. operating temperature: 120 °C

Hint: current revision of the supplier datasheet is applicable
