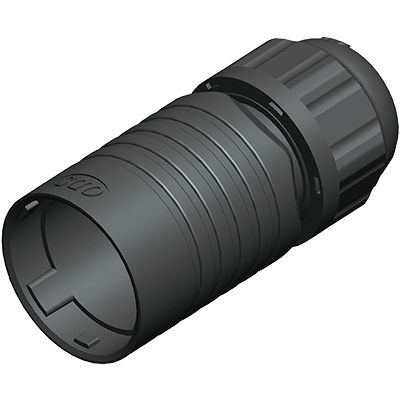

RPSDP08N00-KLG7001 - ODS Electronics

RPSDP08N00-KLG7001
RJ45 Connector Installable Straight
• For Field termination assembly
• The plug can pass through in the body
• 94V-0, (f1) Flame Retardant
• 3-Point Lock mating style
• Connector OD: 20.0mm
• Cable OD: Ø5.5 - Ø7.0mm
• IPX7 rated for harsh environments
• Up to 1,000 mating cycles
Manufacturer:
Productgroup: RJ45 ConnectorsRJ45 Connectors
Part Number: RPSDP08N00-KLG7001
Series: RPS
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Working Voltage : 48 V rms
Contact Current Rating : 1 A
Shield Type: Unshielded
Insulator Material: Plastic
Gender: Plug
Locking System/Mating Style: 3-Point (RJ45 Quick Lock)
Assemble Type: Plug
Waterproof (IP67, IP68, ...): Yes
  Min. operating temperature: -40 °C
  Max. operating temperature: 85 °C

Hint: current revision of the supplier datasheet is applicable
