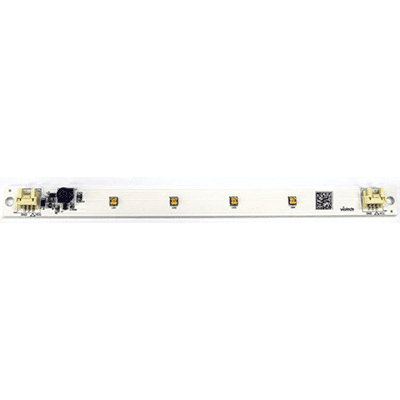

SOPN-CMA-FBC-AR4A - Seoul Viosys

SOPN-CMA-FBC-AR4A
UV-C LED Module | 275 nm | COB
Peak wavelength : 275nm
Radiant Flux: typ. 40mW @200mA
Package:200mm x 15mm x 1,6mm
Viewing Angle: <135°
Forward Voltage: typ. 12V
Manufacturer:
Productgroup: UV-LEDs (COB)UV-LEDs (COB)
Part Number: SOPN-CMA-FBC-AR4A
Datasheet: PDF SOPN-CMA-FBC-AR4A | Seoul ViosysOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Wave Length : 275 nm
UV Range: UV-C
Radiant Flux typ. : 40 mW
If : 200 mA
Forward Voltage : 12 V
View Angle : 135 °
Package Dimensions : 200x15x1,6 mm
  Length: 200 mm
  Width: 15 mm
  Heigth: 1.6 mm
  Min. operating temperature: -20 °C
  Max. operating temperature: 40 °C
  Chassis: WOB (Wicop on Board)

Hint: current revision of the supplier datasheet is applicable
