SP9M4GH1AHI01 - SMART Modular Technologies

SP9M4GH1AHI01
BGAE340 | eMMC 5.1 | MLC | 4GB | 153-ball

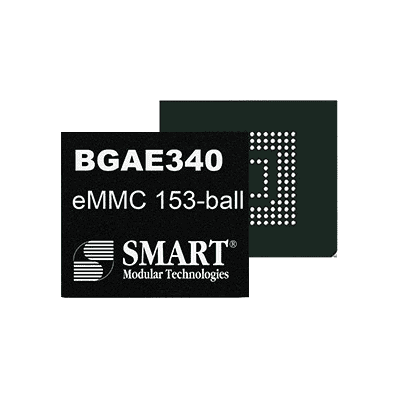

SMART's DuraFlash BGAE340 eMMC with 4GB capacity combines a 2D MLC NAND flash memory, an integrated MMC controller (MultiMediaCard) and optimized firmware in a small BGA chip. A combination that provides reliable, high-capacity, yet cost-effective memory. DuraFlash BGAE340 eMMC meets eMMC v5.1 specifications and can significantly simplify system design thanks to the JEDEC® eMMC standard interface and operating system driver support widely used in host system chipsets.

Features:
- Wear-Leveling
- Garbage Collection
- TRIM Command
- Over-Provisioning
Manufacturer:
Productgroup: eMMCeMMC
Part Number: SP9M4GH1AHI01
Additional Infos: Flyer series BGAE340
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Series: BGAE340
Form Factor: 153-ball
Memory Type: MLC
Interface: eMMC 5.1
Capacity: 4GB
Write Performance : 10 MB/s
Read Performance : 170 MB/s
Operating Voltage : 2,7-3,6 V
Industrie: Yes
  Length: 11.5 mm
  Width: 13 mm
  Heigth: 0.8 mm
  Min. operating temperature: -40 °C
  Max. operating temperature: 85 °C

Hint: current revision of the supplier datasheet is applicable
